whenever underway with engine running, turn off the water pump and keep the sink faucet open. Actually I followed the same, one faucet kept open with hot water position, another faucet kept open with cold water position. Seems end of day, pressure still damaged faucet. Will for sure add expansion tank after faucet is fixed. Thanks again for everyone's input here.
|
|
 |
|
|
FalParsi
Commander
Joined: 28 January 2021 Location: Malta Status: Offline Points: 140 |
Post Options
Thanks(0)
Quote Reply
Posted: 06 February 2025 at 13:42 |
|
This is very welcome info! I'd like to order a couple of spare ceramic valves but I am not anywhere near the boat to measure. Can someone post a link to a suitable valve (I'm in Europe).
Thanks!
|
|
|
2016 Hanse 505 #120
|
|
|
|
|
marsella
Rear Admiral
Joined: 21 June 2022 Location: Antigua Jolly H Status: Offline Points: 592 |
Post Options
Thanks(0)
Quote Reply
Posted: 06 February 2025 at 14:12 |
|

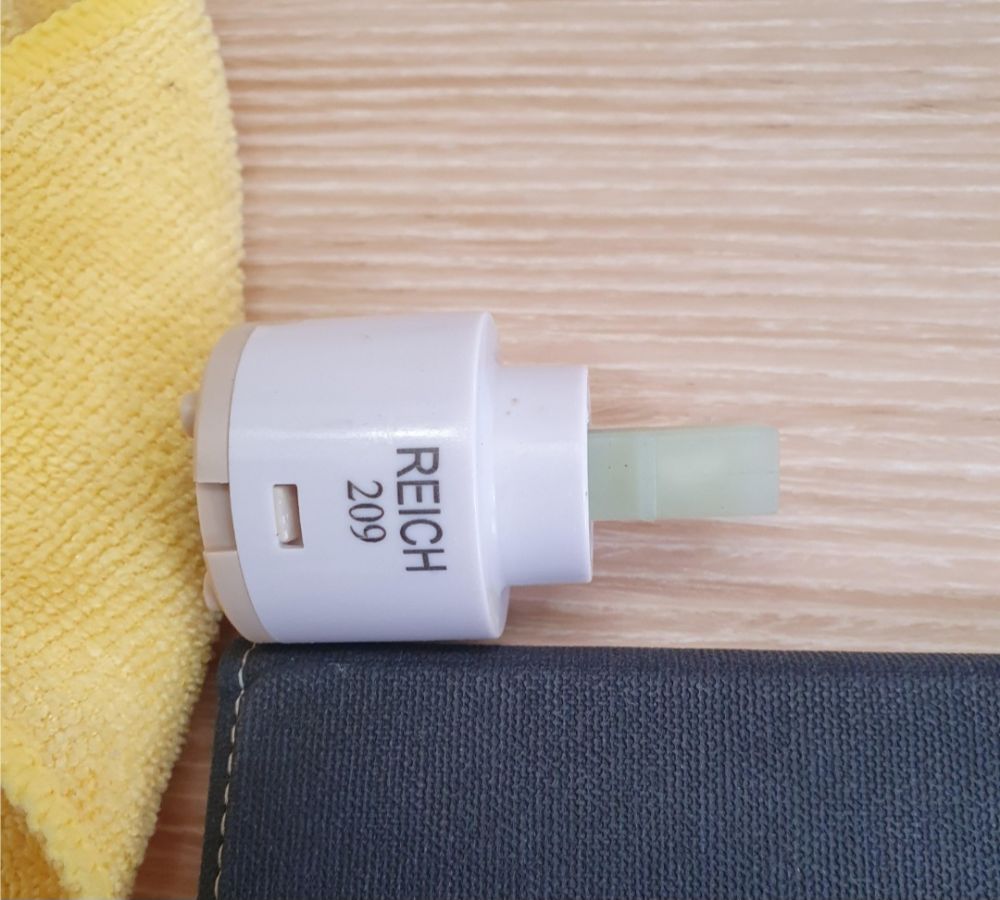

it is popular ceramic 35 mm cartridge with fixing/retaining nut. When I opened mine it looks like that (google "Reich 209 keramik ersatzkartusche") |
|
|
|
|
Sanya455
Sub Lieutenant
Joined: 03 February 2025 Location: Sanya, China Status: Offline Points: 11 |
Post Options
Thanks(0)
Quote Reply
Posted: 20 March 2025 at 09:56 |
|

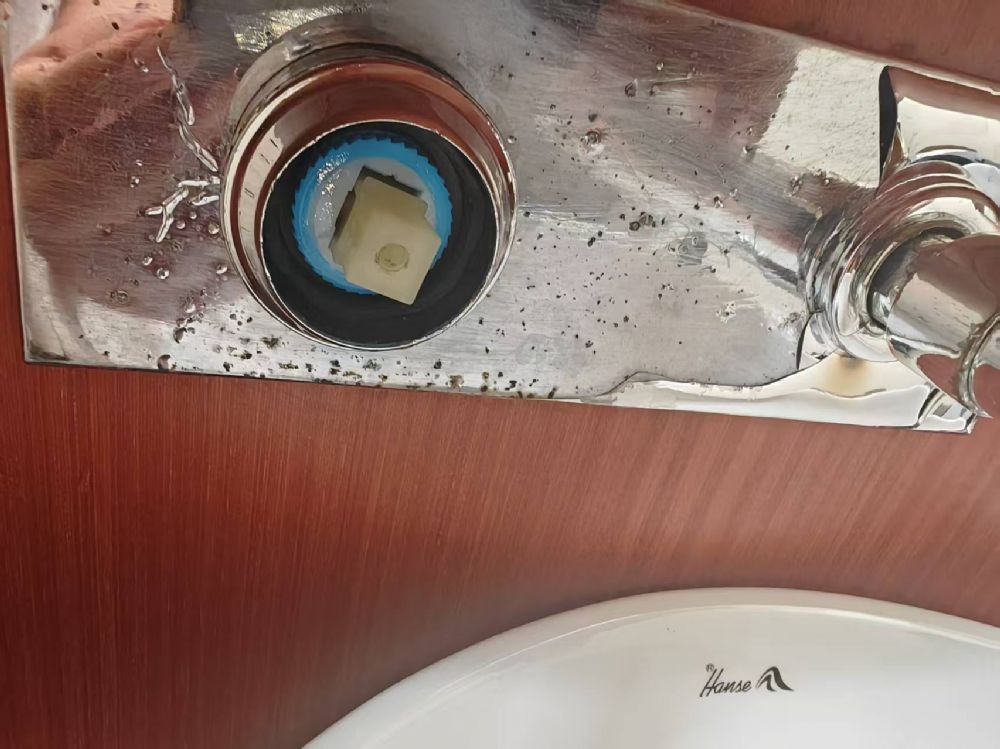

Followed the idea in this post, now need help on last step, how can I take fault cartridge out? Any help here?  |
|
|
|
|
marsella
Rear Admiral
Joined: 21 June 2022 Location: Antigua Jolly H Status: Offline Points: 592 |
Post Options
Thanks(0)
Quote Reply
Posted: 20 March 2025 at 10:11 |
|

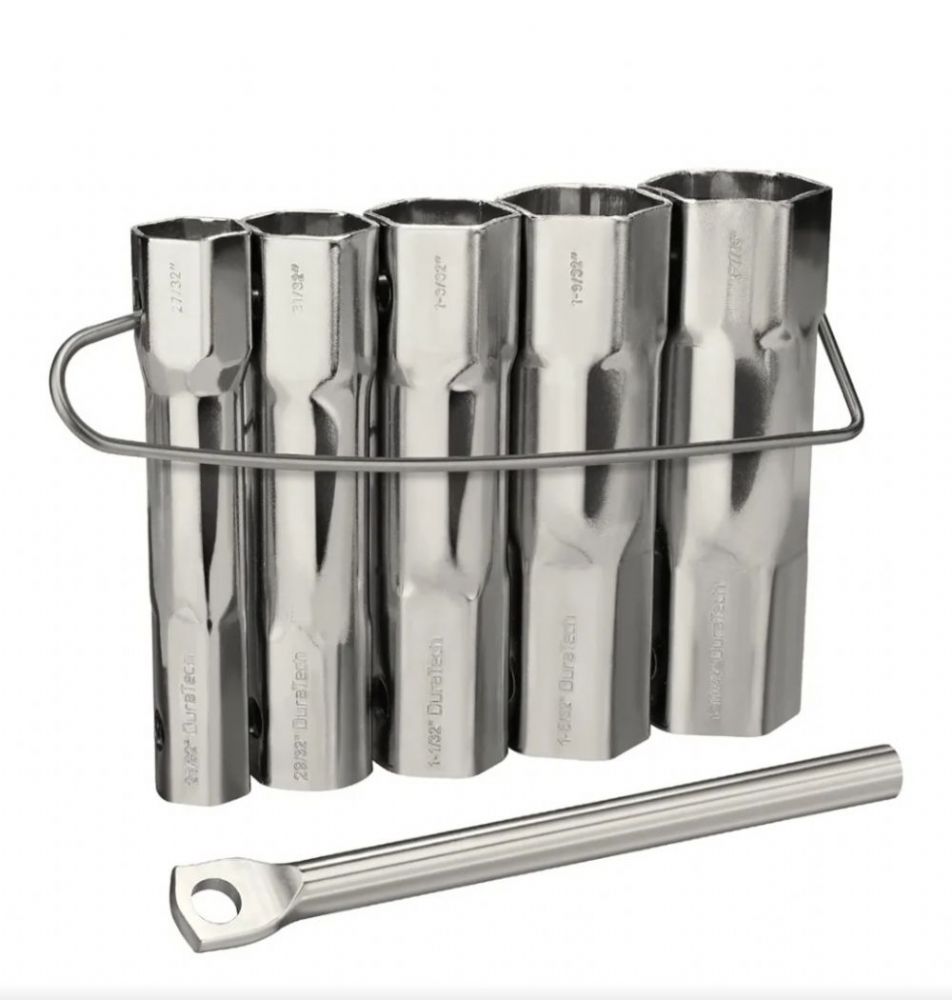

You have to unscrew the ring that keeps the cartridge in place. Its a bit tricky, you need a special faucet wrench for this, check amazon for something like that
 |
|
|
|
|
Sanya455
Sub Lieutenant
Joined: 03 February 2025 Location: Sanya, China Status: Offline Points: 11 |
Post Options
Thanks(0)
Quote Reply
Posted: 20 March 2025 at 10:25 |
|
Thanks so much for this, will buy it now.
|
|
|
|
|
32mike
Commadore
Joined: 26 March 2020 Location: FLorida, US Status: Offline Points: 453 |
Post Options
Thanks(0)
Quote Reply
Posted: 02 April 2025 at 21:33 |
|

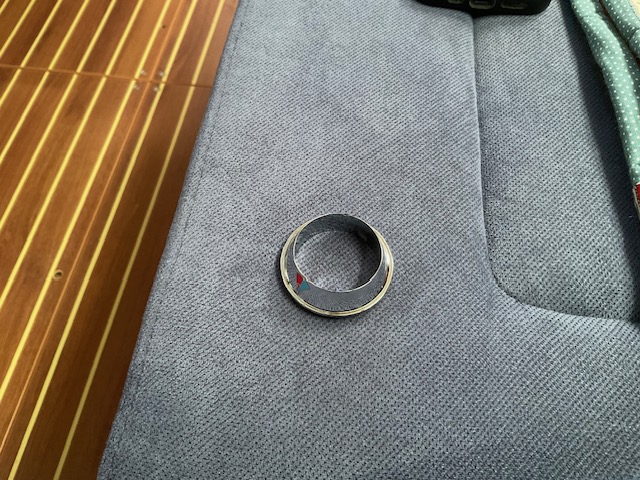

Doing the same repair now. Don’t know if you’ve had success or not but here’s a tip. That tapered silver outer ring will unscrew to reveal the retaining ring. I used WD-40 to free it. You can’t really get pliers on it and it will scratch easily even if you use a cloth.
 |
|
|
Mike
S/V Dulces Sueños 458 #087 Tampa, FL |
|
|
|
|
DuncanW
Sub Lieutenant
Joined: 15 December 2025 Location: Scotland Status: Offline Points: 8 |
Post Options
Thanks(0)
Quote Reply
Posted: 12 March 2026 at 11:50 |
|
This thread is really interesting as i have just brought a 2015 hanse 455 and have the same problem and was suprised no expansion tank and then don't get me started on the madness of the who pumbling system used - i am now thinking of changing everthing to standard Push Fit (JG / Whale) and replacing the system as without very specialist tools you cannot add to the system / repair leaking pipes / change taps. Anyone done that and any advice - i cannot see any connections to the the tanks / pumps that are not non-standard (all look like BSP). I have a 2005 Bavaria before and it was all Whale 15mm and BSP for the taps and had an expansion tank
|
|
|
|
|
marsella
Rear Admiral
Joined: 21 June 2022 Location: Antigua Jolly H Status: Offline Points: 592 |
Post Options
Thanks(0)
Quote Reply
Posted: 12 March 2026 at 18:11 |
|
Just passed expansion tank exercise on my 458 which should be the same as 455. Check my post here:
Can confirm the hot water pressure goes well above 100PSI, which is not good |
|
|
|
|
DuncanW
Sub Lieutenant
Joined: 15 December 2025 Location: Scotland Status: Offline Points: 8 |
Post Options
Thanks(0)
Quote Reply
Posted: 12 March 2026 at 18:32 |
|
thanks loads @marsella - really helpfull and was think the same and can fit a 2l jabsco tank in that space - crazy was not added as default on the boat
|
|
|
|
|
