   Hello everybody!DUe to failure in nmea network trying to locate a CAN bus, Wires goes under a furniture on portside, and it is barely accessible (could be installed on shipyard?).
I found end of a network (terminator) under a ceiling panel in a far end of starboard aft cabin, but cant find another terminator.
Probably someone has the same layout and can advise. It's 461 from 2005.
Thanks

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Sergey Members Profile Send Private Message Find Members Posts Add to Buddy List Sub Lieutenant Joined: 18 April 2023 Status: Offline Points: 3	Post Options Post Reply Quote Sergey Report Post Thanks(0) Quote Reply Topic: 461 NMEA network Posted: 04 May 2023 at 09:56

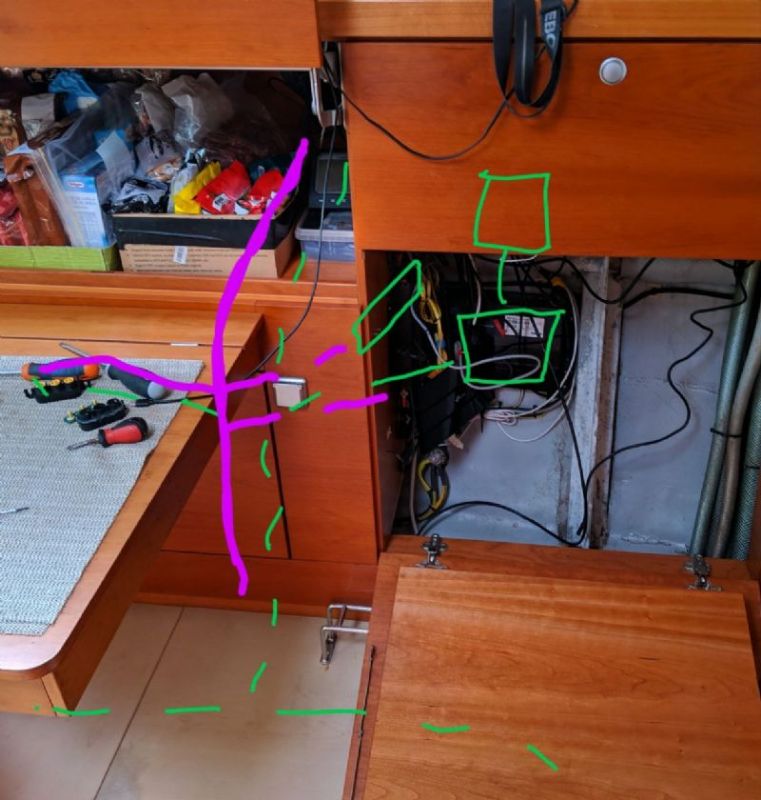

	Hello everybody! DUe to failure in nmea network trying to locate a CAN bus, Wires goes under a furniture on portside, and it is barely accessible (could be installed on shipyard?). I found end of a network (terminator) under a ceiling panel in a far end of starboard aft cabin, but cant find another terminator. Probably someone has the same layout and can advise. It's 461 from 2005. Thanks

Mark_J1 Members Profile Send Private Message Find Members Posts Add to Buddy List Rear Admiral Joined: 12 March 2013 Location: Dover&Medway UK Status: Offline Points: 690	Post Options Post Reply Quote Mark_J1 Report Post Thanks(0) Quote Reply Posted: 04 May 2023 at 13:27
	If you have Simnet cabling fitted (likely from that era build) and have a Simrad/B&G wind transducer then one ‘end’ of the Simnet NMEA network is the wind transducer at masthead and that has a built in terminator. Mark
	Hanse 400e "Grey Goose" Hull #31

Sergey Members Profile Send Private Message Find Members Posts Add to Buddy List Sub Lieutenant Joined: 18 April 2023 Status: Offline Points: 3	Post Options Post Reply Quote Sergey Report Post Thanks(0) Quote Reply Posted: 04 May 2023 at 13:59
	Thanks for comment, Mark, i replaced a wind transducer from old Simrad to B&G 608 a couple of weeks before the failure, was working fine, but than a wind display started to loose data occasionally, which was solvable by depowering all the instruments until recent, when all the data in cockpit missed. As the system was working i suppose a new B&G anemometer also has a built-in terminator.

S&J Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 30 August 2014 Location: Perth WA / Med Status: Offline Points: 1371	Post Options Post Reply Quote S&J Report Post Thanks(0) Quote Reply Posted: 04 May 2023 at 14:43
	One of the reasons that B&G recommend switching from the 508/608 series to the WS300 series is the issue of running lengthy N2K cables up the mast and having to terminate the backbone there. The current models uses either wireless (Bluetooth?) or wired NMEA0183 with a puck that converts to N2K at the base of the mast. I would try disconnecting the wind sensor to see it the cockpit data returns. Also use your MFD to inspect the actual data being retuy. I lost one of my terminators last season (dropped into the bilge and couldn't access) and the system still worked. I have replacement to fit this season. Edited by S&J - 04 May 2023 at 14:44
	H458 #159 Primal Mediterranean cruising
