Autopilot Installation for 350

 Post Reply Post Reply Page  12>
Author
Message
pjwdoyle@yahoo.com View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 28 September 2018
Location: Toronto, Canada
Status: Offline
Points: 18
Post Options Post Options   Thanks (0) Thanks(0)   Quote pjwdoyle@yahoo.com Quote  Post ReplyReply Direct Link To This Post Topic: Autopilot Installation for 350
    Posted: 08 November 2019 at 23:16
Hello; my 350 came from the factory without an autopilot, and she can be tiring to hand-steer on long passages... after being told flatly by my sailing partner at 2am on a doublehanded passage during our watch handover that "I'm not doing this again unless you install an autopilot!", I guess I don't have much choice!

What experiences (good or bad) have people had with aftermarket autopilot installations?

Thanks!
Phil
Back to Top
JUTTER View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 05 November 2015
Location: Belgium
Status: Offline
Points: 62
Post Options Post Options   Thanks (1) Thanks(1)   Quote JUTTER Quote  Post ReplyReply Direct Link To This Post Posted: 09 November 2019 at 08:51
Hi Phil,


My H350 (2010) had no factory installed AP either.

I installed an AP myself in 2015. It is quite a job, but perfectly doable for a handy person.

After five sailing seasons I am very glad having installed the AP: it is not only comfortable on longer passages, it also allows you to leave the wheel safely to do other things like hoisting or take down the mainsail, reefing, adjusting a line etc .

I installed the Simrad DD15 with the B&G AC 42, which works very well on my H 350.

If you might intend to do the same, I can provide a lot more details on the installation of mine.


Claude

JUTTER, Hanse 350#0256, 2010, deep keel, Zeeland
Back to Top
350Bob View Drop Down
Commander
Commander


Joined: 24 August 2015
Location: Greece
Status: Offline
Points: 113
Post Options Post Options   Thanks (1) Thanks(1)   Quote 350Bob Quote  Post ReplyReply Direct Link To This Post Posted: 09 November 2019 at 11:26
Hi Phil,

Not a direct answer to your question but it may me useful. Our 2009 350 came with a factory fitted Jeffa drive unit and a Northstar Explorer control. We always found this very clunky and aggressive to use even after playing with the software options. After a lightning strike we replaced the damaged drive unit with a Raymarine ACU 200, which is a pleasure to use and I am sure much kinder to the steering system. Attached is a picture of the installed drive unit.

Good luck

Bob


Back to Top
mojoraven View Drop Down
Lieutenant
Lieutenant
Avatar

Joined: 07 October 2015
Status: Offline
Points: 22
Post Options Post Options   Thanks (1) Thanks(1)   Quote mojoraven Quote  Post ReplyReply Direct Link To This Post Posted: 10 November 2019 at 07:53
Hi Phil,

Installing an autopilot sounds daunting, but itís fairly simple actually. An autopilot is made up of two parts. One part is the drive unit (that does the physical work) and one part is the brain that tells the drive unit what to do.

For the first part, you should really only consider using the Jefa DD1, the black box shown in the picture below (same as Bob). It is simply attached to the boat by drilling four through holes, one in each corner, and bolting in place with a washer and nuts (see picture 3). The Hanse 350 has already an embedded reinforcement in that place designed for the drive unit.

Picture 1. Drive unit. The circles marks the drill holes through the hull.

A rod is then connected from the unit to the rudder. The placement of the unit is not needed to be terrible precise, just make sure that the ďarmĒ can swing freely. Thatís it! All done for that part unless you need a rudder position indicator (thatís the other arm on the left in Bobís picture), which brings us to the second part.

There are numerous of suppliers to choose from, but if you choose Garmin, Raymarine or B&G, you can get the Jefa DD1 with integrated rudder position sensor and you donít need to do anything else. If you choose another system you need to install the sensor, as seen on Bobís picture.

Iím using a Garmin autopilot, which consist of four pieces. A Helm Control Display, a Course Computer Unit (CCU), a Electronic Control Unit (ECU) and an audio alarm buzzer. See picture below.


Picture 2. Autopilot components

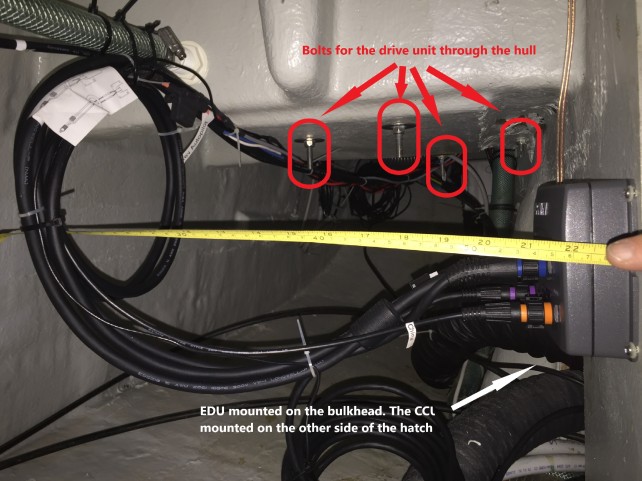

The helm control display needs to be cut in place in the cockpit on either starboard or port side. This is where you set and control the autopilot. Iíve placed the CCU and ECU in the starboard side of the stern transom, just screwed directly into the wood bulkhead. The picture below shows the placement of the ECU. The CCU is placed on the other side of the maintenance hatch.


Picture 3. Stern transom

All you need now is to do the connections between the Jefa and the autopilot. This is really also straight forward and the autopilot manual will have a good description of that. Luckily, Hanse have already pulled the power cable to the transom, so you donít have to worry about connecting cables to the boat. All you have to do is cut the cable in the transom and connect it to the autopilot unit. All done.

Now, once you have done all this you may consider installing a wind vane and a plotter too, in order to fully enjoy and get all out of your new autopilot. But thatís another thread.

Good luck with it all.




Edited by mojoraven - 10 November 2019 at 08:03
Back to Top
Brufan View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 16 December 2010
Location: Belgium
Status: Offline
Points: 565
Post Options Post Options   Thanks (1) Thanks(1)   Quote Brufan Quote  Post ReplyReply Direct Link To This Post Posted: 10 November 2019 at 08:12
You can but you don't need to drill through cockpit floor to install the DD1 drive.  You just have to drill and tap 10mm thick aluminium plate that's laminate there.   Then four 8mm bolts with an isolation paste (tefgel or Duralac)

Edited by Brufan - 10 November 2019 at 08:19
Bruno

hanse 355 - 57

S/Y Spicy Ginger

White hull, 2 cabins, Volvo D1-30, Selden rig, removable mainsheet track system (modifications done now), Simrad-Jefa autopilot.
Back to Top
coriolis2 View Drop Down
Captain
Captain
Avatar

Joined: 06 January 2008
Status: Offline
Points: 238
Post Options Post Options   Thanks (1) Thanks(1)   Quote coriolis2 Quote  Post ReplyReply Direct Link To This Post Posted: 29 December 2019 at 15:48
"Coriolis" H350 #045 (ex Waarschip 570 #? 1987/1992, ex Waarschip 28LD #7 1994/2007)
Back to Top
alettaenmarcel View Drop Down
Admiral
Admiral
Avatar

Joined: 15 August 2006
Location: Netherlands
Status: Offline
Points: 1136
Post Options Post Options   Thanks (1) Thanks(1)   Quote alettaenmarcel Quote  Post ReplyReply Direct Link To This Post Posted: 30 December 2019 at 17:01
Originally posted by Brufan Brufan wrote:

You can but you don't need to drill through cockpit floor to install the DD1 drive.  You just have to drill and tap 10mm thick aluminium plate that's laminate there.   Then four 8mm bolts with an isolation paste (tefgel or Duralac)

The point of only tap is not if it is strong enough or not, but is is very easy to get stolen.
Much things on our hanses are only mounted with scews from the ouatside , and with bolts all the way with nuts makes stealing less easy.

Kids Dingys 72-79 ,Several Windsurfboards 79-86 OK dingy competitions 86-92 , Trotter Pandora Race 92-98, Friendship 28 Sport 98-05, Hanse 370 06-......
Back to Top
sdaniel View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 31 March 2018
Location: Sydney
Status: Offline
Points: 11
Post Options Post Options   Thanks (1) Thanks(1)   Quote sdaniel Quote  Post ReplyReply Direct Link To This Post Posted: 07 January 2020 at 14:04
Originally posted by coriolis2 coriolis2 wrote:

https://www.myhanse.com/forum_posts.asp?TID=6496&title=simrad-autopilot-installation-with-sd10-motor

I did the brilliant install suggested by Rob with the SD10. I used B&G Triton 3 plus NAC-2 control system. Very cost  effective and it is completely noise free. I would argue this is just as effective as the DD15 install and a real alternative.







Back to Top
alettaenmarcel View Drop Down
Admiral
Admiral
Avatar

Joined: 15 August 2006
Location: Netherlands
Status: Offline
Points: 1136
Post Options Post Options   Thanks (0) Thanks(0)   Quote alettaenmarcel Quote  Post ReplyReply Direct Link To This Post Posted: 07 January 2020 at 14:08
very clever suggestion
I am about to think very hard about this because it is much cheaper than the drive from Jefa.
thanks for posting.
gr Marcel
Kids Dingys 72-79 ,Several Windsurfboards 79-86 OK dingy competitions 86-92 , Trotter Pandora Race 92-98, Friendship 28 Sport 98-05, Hanse 370 06-......
Back to Top
Captain Cook View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 23 May 2006
Location: Denmark
Status: Offline
Points: 661
Post Options Post Options   Thanks (0) Thanks(0)   Quote Captain Cook Quote  Post ReplyReply Direct Link To This Post Posted: 07 January 2020 at 15:23
I (myself) have installed a Jefa DD1 which as far as I know is identical to the Simrad DD15 (Both manufactured by Jefa). As you can read in this forum, the Jefa works okay for yachts below 45 feet. You may have to consider to further seal the unit with some kind of sealant in all places where moisture can possibly enter. (E.g the assembly between bottom and upper part). The unit is (as is) not able to withstand a high pressure cleaning. As for the abovementioned advice: "......placement of the unit is not needed to be terrible precise", I will strongly advice you to read the instructions on the Jefa homepage. If you follow those instructions there may be a warranty in case of a failure. It is crucial that the drive is placed correctly and indeed "terrible precise".
There are a few posts here on myhanse on the subject.
Freya Hanse400 #27 from 2006, 40HP Yanmar 3JH4E, Teak deck, 3-blade Flexofold, Aries LiftUp Windvane, Exturn 300, Jefa DD1,Simrad NX40,Icom M603(VHF)+M802(SSB)
