Galvanic isolator

 Post Reply Post Reply Page  123>
Author
Message
daviddb View Drop Down
Lieutenant Commander
Lieutenant Commander
Avatar

Joined: 25 November 2009
Location: United Kingdom
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote daviddb Quote  Post ReplyReply Direct Link To This Post Topic: Galvanic isolator
    Posted: 09 January 2010 at 23:45
Anybody know whether 350s come fitted with a galvanic isolator ("zinc saver") between the earth of the shore power and the boat's earth?

I am still finding everything on my new 350 Selene. In amongst all the installation and operation flyers and brochures there was one for the Sterling battery charger which I of course found with no problem under the chart table, but also one for Sterling's galvanic isolator, which if fitted I have not yet located. Hence the question!

David
Back to Top
iemand View Drop Down
Admiral
Admiral
Avatar

Joined: 13 February 2004
Location: Germany
Status: Offline
Points: 1082
Post Options Post Options   Thanks (0) Thanks(0)   Quote iemand Quote  Post ReplyReply Direct Link To This Post Posted: 10 January 2010 at 18:29
It depends on how old your boat is. The older ones didn't had that but now they fit an isolator in the aft part of the boat behind the connection for the cable.
Back to Top
daviddb View Drop Down
Lieutenant Commander
Lieutenant Commander
Avatar

Joined: 25 November 2009
Location: United Kingdom
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote daviddb Quote  Post ReplyReply Direct Link To This Post Posted: 10 January 2010 at 19:40
Many thanks iemand - she is brand new, I took delivery from Hanse UK on 20th December, so she should have one fitted. I have not yet got as far as exploring the extreme aft end of the boat!

Regards

David
Back to Top
bjoris View Drop Down
Captain
Captain
Avatar

Joined: 11 August 2007
Location: Norway
Status: Offline
Points: 281
Post Options Post Options   Thanks (0) Thanks(0)   Quote bjoris Quote  Post ReplyReply Direct Link To This Post Posted: 01 April 2010 at 21:30
Mine from 2008 does not have this, but is is not expensive so I am planing to fit one. What size is it, I have seen 16 and 30 amp Sterling Zink Savers... Would have been very nice with pitures:)
H350#118
www.bjoris.blogspot.com
Back to Top
Raptor View Drop Down
Captain
Captain


Joined: 28 August 2009
Location: Norway
Status: Offline
Points: 159
Post Options Post Options   Thanks (0) Thanks(0)   Quote Raptor Quote  Post ReplyReply Direct Link To This Post Posted: 05 April 2010 at 06:43
My Hanse 320 from 2009 has one installed. If you open one of the two hatches from the inside you will most probably find it close to the shore power intake.
Back to Top
Gordon Harrison View Drop Down
Captain
Captain
Avatar

Joined: 13 March 2010
Location: United Kingdom
Status: Offline
Points: 256
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gordon Harrison Quote  Post ReplyReply Direct Link To This Post Posted: 07 April 2010 at 10:01
our 320 also has one fitted on the port side aft behind the hatch in the cockpit locker
Gordon
Back to Top
Peter-Blake View Drop Down
Admiral of the Fleet
Admiral of the Fleet
Avatar

Joined: 04 March 2008
Status: Offline
Points: 2465
Post Options Post Options   Thanks (0) Thanks(0)   Quote Peter-Blake Quote  Post ReplyReply Direct Link To This Post Posted: 07 April 2010 at 11:38
Has anybody a foto of a galvanic isolator that Hanse installed?
Blake 370
Back to Top
daviddb View Drop Down
Lieutenant Commander
Lieutenant Commander
Avatar

Joined: 25 November 2009
Location: United Kingdom
Status: Offline
Points: 52
Post Options Post Options   Thanks (0) Thanks(0)   Quote daviddb Quote  Post ReplyReply Direct Link To This Post Posted: 10 April 2010 at 15:50

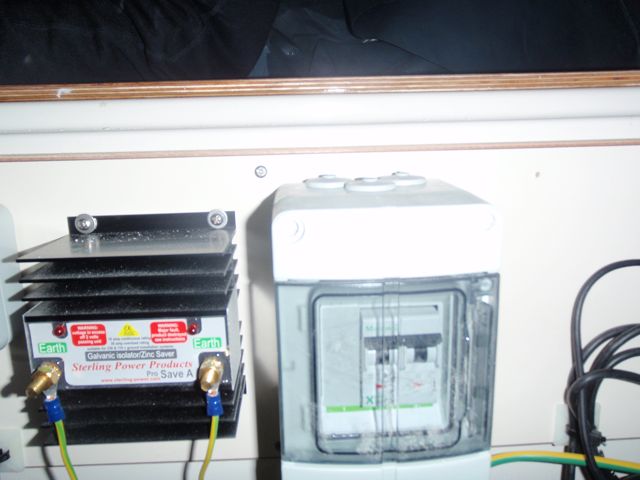

Yes, when I found it (under the bunk in the stern cabin on my 350) I took a photo. Here it is (to the left of the mains isolating switch):-

Hanse 350 353 Selene
Back to Top
Swanji View Drop Down
Captain
Captain
Avatar

Joined: 28 March 2012
Location: Greece
Status: Offline
Points: 348
Post Options Post Options   Thanks (0) Thanks(0)   Quote Swanji Quote  Post ReplyReply Direct Link To This Post Posted: 25 April 2012 at 16:10
We have an early model 350 which doesn't appear to have a galvanic isolator fitted. If it is fitted, then I have yet to find it and it is definitely not next to the mains isolator.

Purchasing a Sterling 30A Pro Save A is easy enough but is it simple to install? Do all metals on the boat need to be bonded together before they are connected to the isolator or have I got it hopelessly wrong and it is far simpler than that?

At the moment it appears as if our boat is unprotected except for the zinc anodes that are obviously in place. These were in surprisingly good condition when we hauled the boat out in February to do the anti-fouling. Happy days!! Ignorance is bliss?
Onwards and upwards

Nidri, Levkada, Ionian, Greece

Hanse 350 #7, SY Evolution, standard keel, 3YM20 sail drive, 3 cabins, cherry wood interior, teak decks, feathering prop
Back to Top
Brufan View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 16 December 2010
Location: Belgium
Status: Offline
Points: 629
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brufan Quote  Post ReplyReply Direct Link To This Post Posted: 25 April 2012 at 19:09
Swanji,

As far as I remember the AC main swith in your yacht is in the aft space (just close to the access hatch from the third (aft port) cabin), close to the engine ventilation pipe.
Normaly, if there's a galvanic isolator it should be fitted very close from this AC main switch.  I have a picture of this AC breaker if you want
Bruno

hanse 355 - 57

S/Y Spicy Ginger

White hull, 2 cabins, Volvo D1-30, Selden rig, removable mainsheet track system, Simrad (now B&G)-Jefa autopilot.
Back to Top
