General query

 Post Reply Post Reply Page  <12
Author
Message
Clouded Pearl View Drop Down
Captain
Captain


Joined: 20 November 2013
Location: UK
Status: Offline
Points: 214
Post Options Post Options   Thanks (0) Thanks(0)   Quote Clouded Pearl Quote  Post ReplyReply Direct Link To This Post Posted: 09 September 2020 at 08:44
That's a fantastic help. Thanks.

I think I'm going to add an inspection hatch in the forecabin ceiling (so I can access this again in future), maybe slightly larger than in the above photo (just to give me more space to work) and then take a look at the points you describe.

I'm slightly puzzled how the third bolt may be inaccessible as when I looked at the broad position of the windlass relative to the inner molding in the forecabin, I would have thought that all bolts would be accessible and there would not have been a bulkhead near that, but I may be misunderstanding something? Nevertheless, your and others' help on here has made up my mind to go in from below via the forecabin, so, thanks!

Just a quick question on the need to cut wires, are these not just bolted to the windlass via ring terminals already? If so, why did you need to cut the wires?


Edited by Clouded Pearl - 09 September 2020 at 08:45
Back to Top
Brufan View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 16 December 2010
Location: Belgium
Status: Offline
Points: 587
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brufan Quote  Post ReplyReply Direct Link To This Post Posted: 09 September 2020 at 09:44
Originally posted by Clouded Pearl Clouded Pearl wrote:


Just a quick question on the need to cut wires, are these not just bolted to the windlass via ring terminals already? If so, why did you need to cut the wires?

There's no cable terminal on windlass.  Two cables exit directly from the housing through a silicone filled gland.  They are approx 4 ft long and they're not very thick (6 or 10 mm˛ as far as I remember). I put the windlass relay in the vicinity with 25 mm˛ cable running from batteries to relay.
Bruno

hanse 355 - 57

S/Y Spicy Ginger

White hull, 2 cabins, Volvo D1-30, Selden rig, removable mainsheet track system (modifications done now), Simrad-Jefa autopilot.
Back to Top
Clouded Pearl View Drop Down
Captain
Captain


Joined: 20 November 2013
Location: UK
Status: Offline
Points: 214
Post Options Post Options   Thanks (0) Thanks(0)   Quote Clouded Pearl Quote  Post ReplyReply Direct Link To This Post Posted: 09 September 2020 at 10:31
Ok. Thanks. Just ordered a suitable crimper.
Back to Top
spam View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 22 February 2017
Location: Boston
Status: Offline
Points: 55
Post Options Post Options   Thanks (0) Thanks(0)   Quote spam Quote  Post ReplyReply Direct Link To This Post Posted: 09 September 2020 at 23:08

Maybe the above image helps a little further.   I basically had to cut the bulk head following the red line.  Since there is an 1" gap between the inner liner of the anchor locker and the bulkhead you can get a saw in between and cut slightly behind the inner liner. Once you do that, I could reach thru the hatch and reach the most forward nut of the windlass.  Cutting the bulkhead behind the liner was a bit of a pain, but doable.

If in your boat the bulkhead is forward of the 3 bolt, even easier...

Harold
S/V Ventus
415/314
Boston
Back to Top
Clouded Pearl View Drop Down
Captain
Captain


Joined: 20 November 2013
Location: UK
Status: Offline
Points: 214
Post Options Post Options   Thanks (0) Thanks(0)   Quote Clouded Pearl Quote  Post ReplyReply Direct Link To This Post Posted: 10 September 2020 at 20:36
Very interesting, thanks. However, I might be being dense, but I don't quite see how by cutting the bulkhead where you indicate, you were then able to access the hidden bolt?

Once you cut where shown, did you drop the bulk head down or did you cut a notch out at the top to then have access to the forward most bolt?

Sorry to seem a stupid question!
Back to Top
spam View Drop Down
Lieutenant Commander
Lieutenant Commander


Joined: 22 February 2017
Location: Boston
Status: Offline
Points: 55
Post Options Post Options   Thanks (0) Thanks(0)   Quote spam Quote  Post ReplyReply Direct Link To This Post Posted: 11 September 2020 at 02:04
Technically you don't need to cut out the entire perimeter, you just need enough to fit your tools through.  So technically you right a "notch" might be enough.   In practice though you might want to open up more of the area since the space between the liner and the bottom of the anchor locker is narrow, about 2", you probably want to be able to grab the nut and washer you are removing, position tools, etc.  Remember you will need to do all of it going through the hatch first so if you cut a small notch behind it that is an extra handicap.   I found it easier to just cut around as indicated, pull it backward through the gap, and then cut the u-shaped 2" cut off  in pieces for easy removal.  Since it is all invisible/non structural anyway, a little more space was nice.  Once you have opened it up, you should have enough space to get to everything in front of the bulkhead reasonably okay for removal and (re) install.

I know it shouldn't be this difficult, but if you find an easier way, have the luck of all your bolt being on this side of the bulkhead and/or your bulkhead already leaving a gap to work through,  let us know.   One of our friends might be interested to know

Success!
Back to Top
Clouded Pearl View Drop Down
Captain
Captain


Joined: 20 November 2013
Location: UK
Status: Offline
Points: 214
Post Options Post Options   Thanks (0) Thanks(0)   Quote Clouded Pearl Quote  Post ReplyReply Direct Link To This Post Posted: 13 September 2020 at 14:24
Work in progress update. ........

I'm at my boat as I write this and I've worked out that I should be able to access the underside of the windlass by doing the following:

1. Adding a circular inspection hatch in the anchor well inner shell exactly as in S&J's picture of their 385 (mine doesn't have an inspection hatch).

By pressing up on the anchor locker inner shell all over it, I can roughly tell that there is a void on the port side but not the starboard, just as I would expect given the moulding inside the anchor locker itself.

By measuring from the forward hatch handle to the forward bulkhead in the forecabin, and repeating on deck, I can now see that my windlass straddles behind and in front of the forward bulkhead. Consequently, once I get the circular inspection hatch cut, I'll be able to establish whether I have access to the forward most stud(s) on the underside of the windlass. If not, I will need to carry out point 2 as well.

2. If access is blocked to the forward stud(s), I've calculated that if I add a small rectangular inspection hatch through the underside of the forward shelf in the forecabin, that will be wide and deep enough to gain access to any studs in front of the bulkhead. This is because the shelf extends further forward than the bulkhead in the cabin and actually appears as though it is solely decorative to cover the sloping anchor locker inner moulding.

Assuming this works, which I'm confident it should, the shelf inspection hatch will never be visible but will allow maintenance in future.

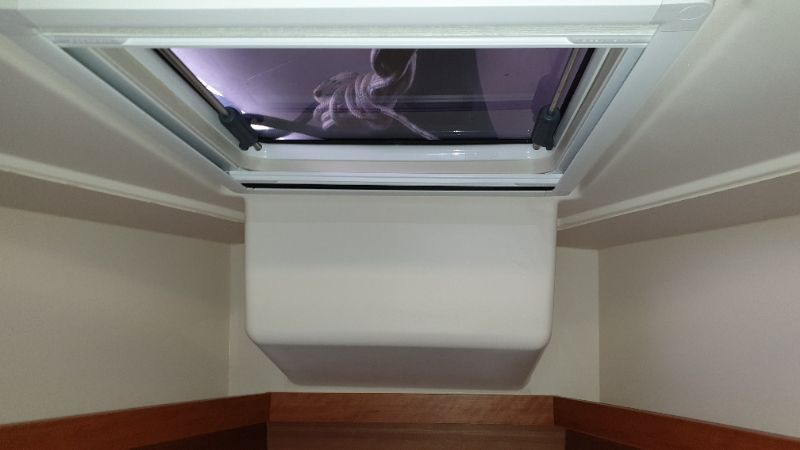

The approximate location of the hatches will be as shown:





Edited by Clouded Pearl - 13 September 2020 at 14:30
Back to Top
AndyS View Drop Down
Captain
Captain


Joined: 14 June 2016
Location: River Dunes, NC
Status: Offline
Points: 184
Post Options Post Options   Thanks (0) Thanks(0)   Quote AndyS Quote  Post ReplyReply Direct Link To This Post Posted: 13 September 2020 at 17:43
Thanks for this "real time" reporting - interested to see how this turns out, as this is great info for all of us. Thanks!
Andy
Moonraker
River Dunes, NC
Back to Top
Pete In The East View Drop Down
Sub Lieutenant
Sub Lieutenant


Joined: 09 November 2020
Location: Orwell, Suffolk
Status: Offline
Points: 6
Post Options Post Options   Thanks (0) Thanks(0)   Quote Pete In The East Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2022 at 17:02
Can you please add some photos of your modifications? Thanks!

Originally posted by spam spam wrote:

I had exactly the same problem.  I have a 415, but believe the set up is essentially the same.  My boat has the inspection hatch factory installed (see picture S&J), but that is only so helpful as the hatch only gives you to access to 2 of 3 nuts on the thread rods that hold the windlass in place (the windlass is designed for four, but Hanse only seems to be using three rods to hold it in place).  The third nut is behind the bulkhead that forms the forward edge of the bed/cabin which is between the forward and aft bolts and somehow goes all the way up to the bottom of the anchor locker blocking access to the most forward bolt.

Like you I considered cutting an access panel in the anchor locker to access the third nut.  The disadvantage is obviously that you are breaching the watertight barrier and are creating a potential area for leaks.  Water could get from the anchor locker into the cabin if the hatch or flange is not sealed/bedded properly.  In the end I realized there was a different way to solve the problem and went that way.

The approach I used was to, with a small saw, reach in between the inside shell covering the anchor well in the forward cabin and cut down the bulk head to follow the shape of the inside shell (or 1/2" inside of the shell perimeter if you saw under an angle).  There is about a 1" gap in my case between he inside shell and the forward bulk head.   I believe this is standard on my vintage boats since I have seen it on other 415 and 385s as well.  Once the bulkhead is following the inside shell's edge, you can reach through the inside inspection hedge (see S&Js picture) and get to the bolt.  Not easy but if you use a ratcheting wrench pretty doable.   Cutting the bulk head down to be slightly inside the inside shell's perimeter makes it is not visible from the cabin/bed and there is no need to cut a hedge in the anchor locker (avoiding possible leaks).

One more tip, to get the windlass truly off the boat you will need to cut the cables.  You might want to invest in a heavy duty crimping tool and connectors to put everything back together when you are done

Why Hanse doesn't cut down the bulkhead to match their inside shell is a mystery, especially since they clearly realized -at some point- that not having some inside access to the bottom of the windlass was a bad idea.  My guess is that the official drawings show the bulkhead matching the inside shell but that the building crew found it easier to only rough cut the bulk head to clear the anchor well as the ample overlap of the inside shell would hid any sloppiness in the cut...

As said, had exactly the same issue so let me know if you have further questions.  Success!

Harold
S/V Ventus
415/#314
Boston


Back to Top
