   For those who are interested, here are some photos of my Hanse 418 forepeak.
For those who want to replace one of the hex drive M10 screws in the bow roller fitting bow stem bracket with a M10 316 stainless steel eye bolt as a fixing point for a bobstay, the hex drive M10 screws do not have nuts on the forepeak side. They only screw into a tapped aluminium backing plate. Please see my previous post on the bobstay I have installed.

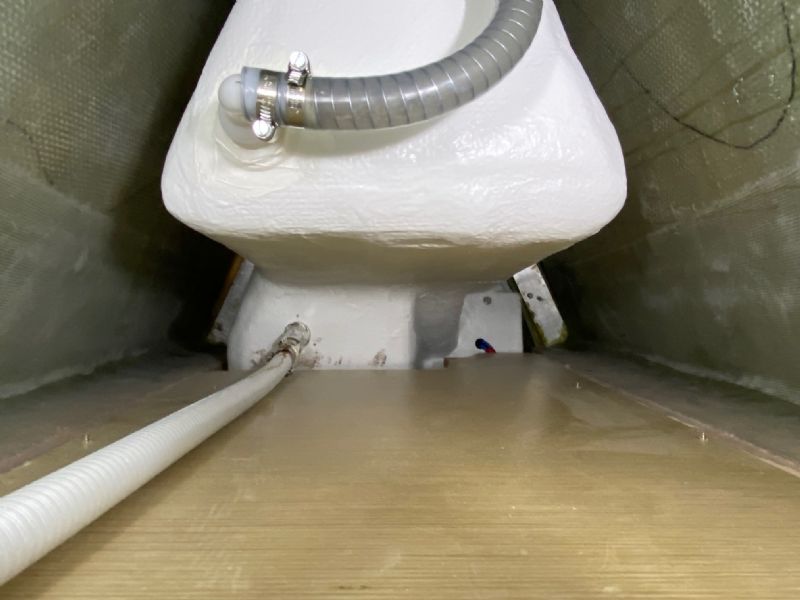

The white hose shown in the last photo is the sea water supply to the deck wash outlet. Again, if you want to install a anchor locker deck wash system this is the most optimum position I could find.

Enjoy.

Author	Message Rating: Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Ranu Members Profile Send Private Message Find Members Posts Add to Buddy List Lieutenant Commander Joined: 16 November 2019 Location: Sydney Status: Offline Points: 50	Post Options Post Reply Quote Ranu Report Post Thanks(0) Quote Reply Topic: H418 - Forepeak Photos Posted: 08 October 2021 at 22:59
	For those who are interested, here are some photos of my Hanse 418 forepeak. For those who want to replace one of the hex drive M10 screws in the bow roller fitting bow stem bracket with a M10 316 stainless steel eye bolt as a fixing point for a bobstay, the hex drive M10 screws do not have nuts on the forepeak side. They only screw into a tapped aluminium backing plate. Please see my previous post on the bobstay I have installed. The white hose shown in the last photo is the sea water supply to the deck wash outlet. Again, if you want to install a anchor locker deck wash system this is the most optimum position I could find. Enjoy.
