Topic: SIM-nett, Hanse 370
Posted By: Trygve
Subject: SIM-nett, Hanse 370
Date Posted: 16 March 2026 at 14:54
Hi!
i have a Hanse 370 from 2008. I am now trying to draw a picture of the Simrad/Simnett installation in my boat. In this work I have som questions:
1. In the ceiling close to the mast there is a T-joiner. One of the cables connected I guess goes to the windsensor in the top of the mast. The cable with the yellow lable goes goes to the multijoiner near the charttable I think. The last connected cable is a very short one (10cm), What is that?? Is it a termination? I thought the termination in this end of the SIM-nett was located to the windsensor? I have two other terminationplugs in my SIM-net and I am now wondering if there are too many terminations in the net?
2. There is an airmar log/depth sensor in under the floor in the front cabin. Does anybody knows where the dropcable from this installation is routed? I cant find out where the dropcable is connected to the SIM-nett.
Any advice is appreciated, Thank you!



-------------
Trygve



Replies:
Posted By: jeb
Date Posted: 16 March 2026 at 15:25
The short cable in the T-joiner is a filter (rumors says needed since Hanse fitted a performance cable up the mast). My Airmar multi sensor (DST810Smart) is connected to the T-joiner located in the port wardrobe in the forward cabin (behind a hatch). I have a 400 from 2006, but i believe the 370 had same electrical layout. There is another T-joiner behind the electrical panel. If you have the older IS12 instruments the transducer is analoge and has cables directly to the IS12 combi at the helm.

-------------
Jesper
Hanse 400e


Posted By: Trygve
Date Posted: 16 March 2026 at 16:08
Thank you Jesper?
Do you know if there is a termination in the windtransducer in the mast, or is the termination located to the multijoiner (7) under the electrical panel and the second one in one of the IS 20 displays at the helm?


-------------
Trygve


Posted By: H8jer
Date Posted: 16 March 2026 at 19:09
Hi Trygve.

Sounds like you are unaware of this Joiner behind the forward cabin closet.
https://myhanse.com/where-is-the-log-depth-and-wind-transducers-connec_topic12470_post102747.html#102747" rel="nofollow - https://myhanse.com/where-is-the-log-depth-and-wind-transducers-connec_topic12470_post102747.html#102747


-------------
Hanse 370#487 30HP 3-cabin


Posted By: Yoda
Date Posted: 16 March 2026 at 20:37
The original Airmar (DST800) sensor cables run straight to the speed/depth display.


Posted By: H8jer
Date Posted: 17 March 2026 at 04:06
Originally posted by Yoda Yoda wrote:

The original Airmar (DST800) sensor cables run straight to the speed/depth display.
What build number is that?
Thats strange.
Back to Trygve.
The windtransducer has Builtin terminator.


-------------
Hanse 370#487 30HP 3-cabin


Posted By: lovind
Date Posted: 17 March 2026 at 07:17

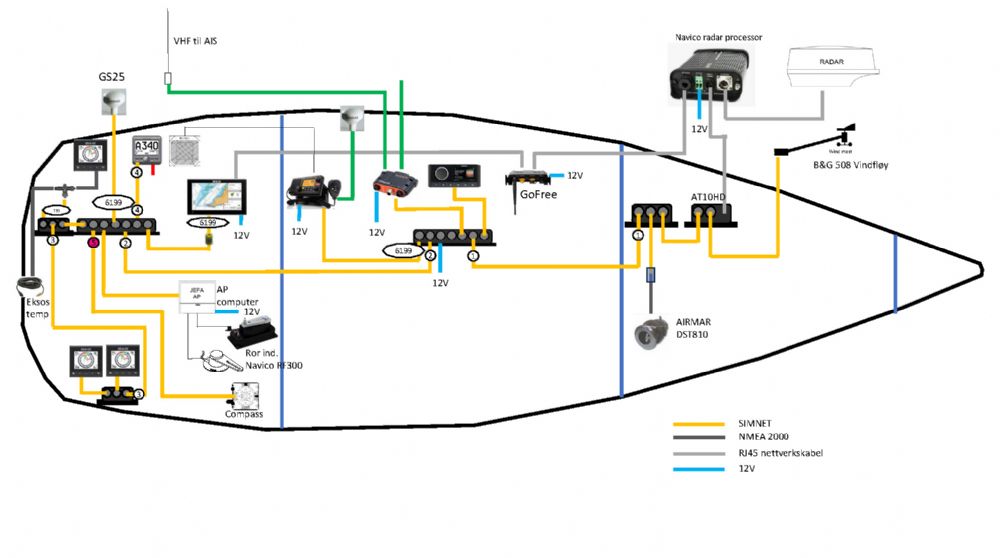

I’ve sketched the SimNet network for my H370 (2008 model). All SimNet components are original, while some NMEA 2000 components were added later. Typically, the wind sensor is the first terminator, and there should be a second terminator connected either to an instrument or elsewhere in the SimNet. I believe you will find more SimNet cables and connectors behind the port locker.




-------------
Lovinda II
Hanse 370 #505


Posted By: jeb
Date Posted: 17 March 2026 at 08:37
Answer to Trygves Q earlier in the tread. Yes, there is a termination in the wane itself. On my boat the Simnet is feed from the Helm and that cable (red connector) includes the other terminator. Some systems are feed from the navstation, and then you need a power cable without termination and a separate termination at the helm. At the mast-base I have the filter (7-10 cm long cable).

-------------
Jesper
Hanse 400e


Posted By: Yoda
Date Posted: 17 March 2026 at 20:20
The IS12 combi unit looks like this on the back:
SIMRAD IS12 COMBI Depth & Speed Display Head Unit - Picture 8 of 8

If you have this unit you will probably have separate log and depth transducers which feed straight back to the IS12.



Posted By: Yoda
Date Posted: 17 March 2026 at 20:24
Try this link for a picture of the back of the IS12 Combi unit. You may be able to see it from inside the Stbd cockpit locker.

https://www.ebay.co.uk/itm/286913956393?chn=ps&_ul=GB&norover=1&mkevt=1&mkrid=710-134428-41853-0&mkcid=2&mkscid=101&itemid=286913956393&targetid=2446591572460&device=c&mktype=pla&googleloc=9045309&poi=&campaignid=23482766633&mkgroupid=187178521170&rlsatarget=pla-2446591572460&abcId=10587136&merchantid=507151727&gad_source=1&gad_campaignid=23482766633&gbraid=0AAAAAD_Lr1dmvUa4ya5_HZxYxFbQz8R2p&gclid=Cj0KCQjw9-PNBhDfARIsABHN6-0Q_Xt1b1uNHq6q-mzG6hpn68OvfQeKp9XlFLmVgeYEA1lK_VuiHK8aAil1EALw_wcB%20" rel="nofollow - https://www.ebay.co.uk/itm/286913956393?chn=ps&_ul=GB&norover=1&mkevt=1&mkrid=710-134428-41853-0&mkcid=2&mkscid=101&itemid=286913956393&targetid=2446591572460&device=c&mktype=pla&googleloc=9045309&poi=&campaignid=23482766633&mkgroupid=187178521170&rlsatarget=pla-2446591572460&abcId=10587136&merchantid=507151727&gad_source=1&gad_campaignid=23482766633&gbraid=0AAAAAD_Lr1dmvUa4ya5_HZxYxFbQz8R2p&gclid=Cj0KCQjw9-PNBhDfARIsABHN6-0Q_Xt1b1uNHq6q-mzG6hpn68OvfQeKp9XlFLmVgeYEA1lK_VuiHK8aAil1EALw_wcB


Posted By: Trygve
Date Posted: 17 March 2026 at 22:29
Thanks, that was an impressing scketch!



-------------
Trygve


Posted By: Trygve
Date Posted: 17 March 2026 at 22:33
Thanks to all of you for good tips⛵️😊

-------------
Trygve


Posted By: Trygve
Date Posted: 19 March 2026 at 18:41
Thanks for all respons on my post concerning Simnett in my Hanse 370😊

-------------
Trygve
