Rebuilding my Hanse 345 2015 mod |
Post Reply
|
Page <1234> |
| Author | |
samuel
Admiral of the Fleet
Joined: 26 December 2004 Location: United Kingdom Status: Offline Points: 2770 |
 Post Options
 Thanks(0)
 Quote Reply
 Posted: 07 April 2023 at 17:21 |
That is Ok, but what happens when you want to go sailing with 3 fat blokes as well? Is that not the same as SIX grown men?  (Plus you makes 7) That is pushing your luck a bit, isn't it? Edited by samuel - 08 April 2023 at 08:54 |
|
|
Daydream Believer- Hanse 311- No GBR9917T- Bradwell Essex
|
|
 |
|
|
oj_knut
Lieutenant Commander
Joined: 20 December 2022 Location: Norway Status: Offline Points: 54 |
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2023 at 09:01 |
|
Hello dear Hanse friends, it's been a while since I've posted some pictures of the rebuild.
But I work a little while I enjoy some nice sailing days here in Norway. What I've been working on lately is installing a windlass in the back, this is a big and "tight" project, I'm not finished, but it's getting closer.    |
|
|
|
|
oj_knut
Lieutenant Commander
Joined: 20 December 2022 Location: Norway Status: Offline Points: 54 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 May 2023 at 12:16 |
|

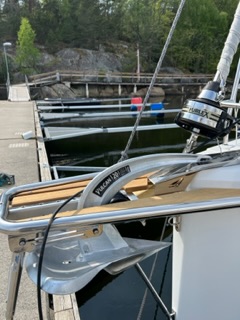

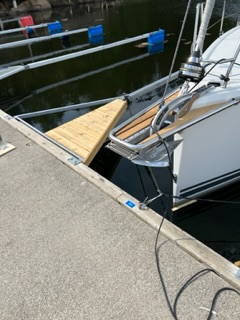

This week I have been working on fitting a bowsprit.

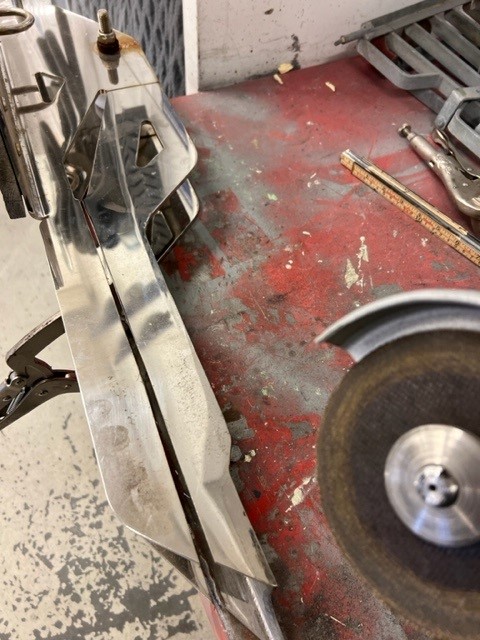

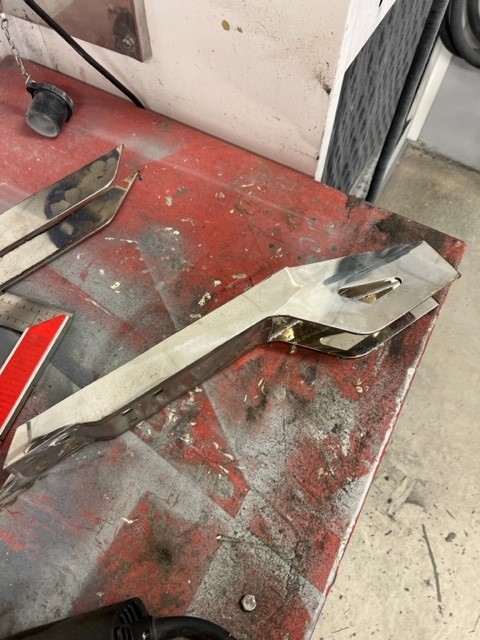

First, I had to dismantle the old one, this had to be modified so that I could keep the upper part, while I removed the outermost part.
  The new one has a separate "Code attachment", and has a ladder underneath.    |
|
|
|
|
Fendant
Admiral
Joined: 03 November 2012 Location: Switzerland Status: Offline Points: 1671 |
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2023 at 09:33 |
|
How did you attach the new bowsprit to the hull?
I assume that you need reinforcements inside the anchor well. |
|
|
Frank
|
|
|
|
|
oj_knut
Lieutenant Commander
Joined: 20 December 2022 Location: Norway Status: Offline Points: 54 |
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2023 at 14:33 |
|
No reinforcement is required. (my opinion). But since the boat has a double hull, I had to open up mounting holes in the inner hull, so I was able to attach it to the outer hull. The same had to be done to mount the support down.
 Edited by oj_knut - 15 May 2023 at 14:35 |
|
|
|
|
oj_knut
Lieutenant Commander
Joined: 20 December 2022 Location: Norway Status: Offline Points: 54 |
Post Options
Thanks(0)
Quote Reply
Posted: 15 May 2023 at 14:40 |
|

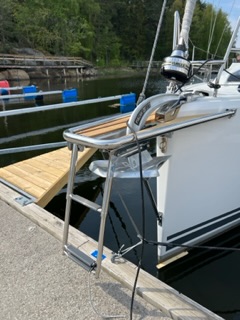

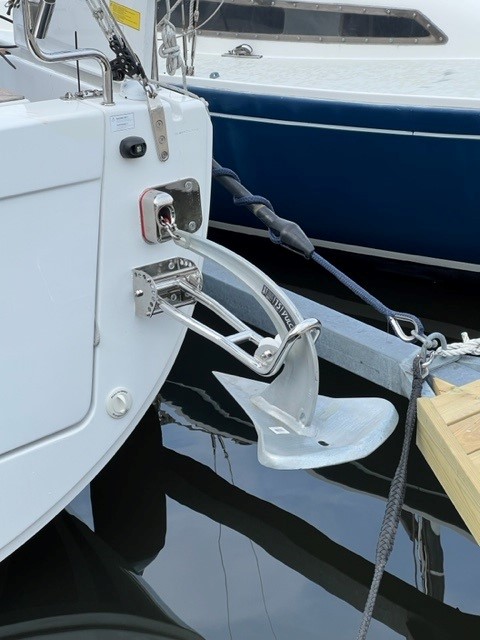

Got the anchor installed today. The choice fell on the Rocna Vulcan 20kg. There was also time to install a ladder underneath.
   |
|
|
|
|
Jonas C
Sub Lieutenant
Joined: 03 July 2017 Location: Sweden Status: Offline Points: 14 |
Post Options
Thanks(0)
Quote Reply
Posted: 08 August 2023 at 17:56 |
|
Hi there, i have the same thoughts, really need a stern windlass, im getting to old to manyally hoist the anchor..
Can you please provide more details on the installation? Would help me massivly. i see you use chain, im thnking leaded line? /Jonas Caspersson Hanse 345 #15
|
|
|
Hanse 345 #15
|
|
|
|
|
boatman
Commander
Joined: 18 September 2022 Location: East US Status: Offline Points: 119 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 August 2023 at 18:14 |
|
My 8' dinghy weighs 60 lbs (not a solid RIB) and my 2.5hp engine weighs 30 lbs. Total weight under 100 lbs, and I leave the engine on the stern rail, so it is really only 60lbs hanging. Just adding this as even when I had my lagoon 38 cat, I had a 10' RIB weighing 120 lbs, and a 4 hp motor weighing 50 lbs. So not sure what gets you to 300lbs of dinghy and motor that fits behind a 34' boat?
|
|
|
|
|
oj_knut
Lieutenant Commander
Joined: 20 December 2022 Location: Norway Status: Offline Points: 54 |
Post Options
Thanks(0)
Quote Reply
Posted: 18 August 2023 at 11:26 |
Hi And I'm sorry I haven't answered your question, I've been on holiday, so little on the PC. In order to make room for the winch, I had to remove the place where the gas tank is, this had to be cut away and a new room for the winch molded. I don't think it will work with lead rope, since the chain has to slide along the inside of the boat and into a separate chain box I have made to be cast into the boat. This whole winch job is not an easy solution, it will involve a lot of molding and applying new gelcoat. I'm not quite finished either, so we'll see what I can do this winter. |
|
|
|
|
oj_knut
Lieutenant Commander
Joined: 20 December 2022 Location: Norway Status: Offline Points: 54 |
Post Options
Thanks(0)
Quote Reply
Posted: 18 August 2023 at 11:59 |
|
Davits are fitted and work great.
I hoist them up and down with the mainsail drop, and when they are up they are tightened against the deck. To all of you who were worried about the boat "sinking", I can tell you that even in high winds I can't feel a difference in the boat (although there is certainly a difference) when I'm sailing. The boat has a slightly lower waterline at the back, but this will be rectified with some new projects in the spring.
Sorry for the bad photos, will try to remember to take new ones this weekend.   |
|
|
|
|
