   OK...  concern vindicated.    Our commissioning broker did some research with Hanse.  They mistakenly put in a 15AMP fuse at the factory when it should be a 30 AMP fuse.    I asked if the Wuerth panel can take that load and they said yes.  So I am swapping out the fuse for a 30AMP resettable fuse.   As well as some other fuses likely to pop (with the right amperage).

Others out there might want to check.  The problem (restated) is that the autopilot controller has a 30 AMP fuse in the box and at times it can draw high loads in heavy seas.  The B&G guy told me a 50 AMP fuse would work fine as well.   The autopilot controller fuse won't pop in the scenario from the factory.  The little 15 AMP fuse will blow first.    If you want a fuse in front of the autopilot controller to pop, then put a 25AMP in front or bump up the one in the B&G box to 50AMPS (or at least more than 30AMP).

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Black Diamond Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 24 October 2015 Location: Newport, RI, US Status: Offline Points: 1275	Post Options Post Reply Quote Black Diamond Report Post Thanks(0) Quote Reply Posted: 06 October 2017 at 18:52
	OK... concern vindicated. Our commissioning broker did some research with Hanse. They mistakenly put in a 15AMP fuse at the factory when it should be a 30 AMP fuse. I asked if the Wuerth panel can take that load and they said yes. So I am swapping out the fuse for a 30AMP resettable fuse. As well as some other fuses likely to pop (with the right amperage). Others out there might want to check. The problem (restated) is that the autopilot controller has a 30 AMP fuse in the box and at times it can draw high loads in heavy seas. The B&G guy told me a 50 AMP fuse would work fine as well. The autopilot controller fuse won't pop in the scenario from the factory. The little 15 AMP fuse will blow first. If you want a fuse in front of the autopilot controller to pop, then put a 25AMP in front or bump up the one in the B&G box to 50AMPS (or at least more than 30AMP).
	Rick S/V Black Diamond Hanse 575 Build #192, Hull# 161 Newport, RI

Jeremy Members Profile Send Private Message Find Members Posts Add to Buddy List Commander Joined: 28 February 2018 Location: Auckland NZL Status: Offline Points: 91	Post Options Post Reply Quote Jeremy Report Post Thanks(0) Quote Reply Posted: 01 March 2018 at 19:33
	Hi, Ive also blown my cockpit table lamp fuse but cant find it. Do you remember where it was? I have a 415. Thanks!! Jeremy

Black Diamond Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 24 October 2015 Location: Newport, RI, US Status: Offline Points: 1275	Post Options Post Reply Quote Black Diamond Report Post Thanks(0) Quote Reply Posted: 01 March 2018 at 22:23
	uploads/5058/12V_DC_Panel_on_575.pdf I haven't validated this, but it looks like XB9.7.46. Take a look at this diagram. Rick
	Rick S/V Black Diamond Hanse 575 Build #192, Hull# 161 Newport, RI

Black Diamond Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 24 October 2015 Location: Newport, RI, US Status: Offline Points: 1275	Post Options Post Reply Quote Black Diamond Report Post Thanks(0) Quote Reply Posted: 01 March 2018 at 22:46
	uploads/5058/Wuerth_DC_Panel_Engl_20130109-933b7.pdf This also might help..
	Rick S/V Black Diamond Hanse 575 Build #192, Hull# 161 Newport, RI

Comanche Members Profile Send Private Message Find Members Posts Add to Buddy List Sub Lieutenant Joined: 11 June 2018 Location: New york Status: Offline Points: 1	Post Options Post Reply Quote Comanche Report Post Thanks(0) Quote Reply Posted: 11 June 2018 at 01:52
	Hi Rick Just cruising the forum looking for an answer on blown fuse and your post caught my eye. I have lost all the reading lights in the cabins, the ones with the red/night lights as well. I can’t seem to find the blown fuse. Could you send me the diagram as well when you have a chance, thanks

Magicol Members Profile Send Private Message Find Members Posts Add to Buddy List Commander Joined: 16 June 2016 Location: Scotland Status: Offline Points: 96	Post Options Post Reply Quote Magicol Report Post Thanks(0) Quote Reply Posted: 26 September 2024 at 10:54

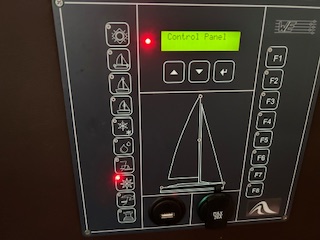

	I found this older thread when searching for a solution to the warning light I have on my switch panel and the accompanying flashing light on the electronics button. As suggested and assuming it is a blown fuse, I searched for this behind the panel. I think I have tested every fuse on the board without success. Are there fuses elsewhere? I would be grateful for any suggestions and advice.
	Hanse 345 #237 based on the Clyde

Black Diamond Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 24 October 2015 Location: Newport, RI, US Status: Offline Points: 1275	Post Options Post Reply Quote Black Diamond Report Post Thanks(0) Quote Reply Posted: 26 September 2024 at 11:32
	A couple of thoughts: 1. Yes.. I have found fuses elsewhere. For example, the autohelm has a 50 AMP fuse in my cockpit locker that for some stupid reason was being fed by a 15AMP fuse. As the panel had limitations, I was only able to bump it to 25AMPS. Meaning the 50 AMP should never blow but the 25AMP will in rough seas. Nice design...(not) The wiring diagrams SOMETIMES lay out where these fuses are if you have them. 2. I use "glow when blown" fuses to make it easy to find the blown fuse. Although I have a wurth panel diagram, its just easier to spot them rather than counting slots.
	Rick S/V Black Diamond Hanse 575 Build #192, Hull# 161 Newport, RI

Wayne's World Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 18 July 2012 Location: Cruising Status: Offline Points: 1434	Post Options Post Reply Quote Wayne's World Report Post Thanks(0) Quote Reply Posted: 26 September 2024 at 19:12
	Colin, I think the flashing red light to the left of the LCD panel in your image indicates a low level warning on one of your tanks (water or fuel) or a high level (>75%) warning for one of your toilet holding tanks. If you press the up or down buttons ( and keep pressing and eventually it should take you to the warning for the particular tank. If you sort the problem (fill water or fuel or empty the toilet tank) the light will disappear.
	Wayne W Cruising, currently in the Pacific until the end of 2026.

Magicol Members Profile Send Private Message Find Members Posts Add to Buddy List Commander Joined: 16 June 2016 Location: Scotland Status: Offline Points: 96	Post Options Post Reply Quote Magicol Report Post Thanks(0) Quote Reply Posted: 27 September 2024 at 08:42
	Thank you for the replies. Rick, I will look to see if there is an additional fuse elsewhere for the autohelm on our 345. Wayne, the flashing light is the one on the left - on the navigation instruments button. I understood that this, combined with a solid light next to the Control Panel LED, indicates a blown fuse. Is this correct? Thanks for taking time to help. Colin
	Hanse 345 #237 based on the Clyde

Wayne's World Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 18 July 2012 Location: Cruising Status: Offline Points: 1434	Post Options Post Reply Quote Wayne's World Report Post Thanks(0) Quote Reply Posted: 27 September 2024 at 10:38
	Colin, I think you will find that is two separate issues. A flashing red light on one of the buttons like the Nav instruments button means a blown fuse on that circuit. A red light left of the LCD panel indicates as I listed above in my last post ie a problem with any of the items measured by the LCD screen - fuel, water, sullage or even battery voltage of the house or engine start battery.
	Wayne W Cruising, currently in the Pacific until the end of 2026.
