"ARCO DE POPA"

Hello everyone

I do not know what the stern arch is called, to put solar panels and hold the dinghy. But I would like to ask in the forum if someone has done it and what model has been followed for its placement.

I would not like to make holes in the bathtub, or make as few as possible. And also not spoil the aerodynamics of the boat.

Let's see if I'm lucky and find someone who can and wants to help me.

Greetings to all!!

I'd strongly suggest you think deeply about what effects you want to achieve and discuss this with the builder.  For me this was:

Create a 'cage' at the stern for greater security offshore in a seaway

Provide a platform for radar, solar panels and other aerials

Replace guard wires along both sides of the cockpit to the sprayhood with solid guard rails

Replace the removable guard wires across the transom with removable solid guard rails

Provide a much stronger frame for the cockpit tent

Unless you are mainly day-sailing from anchorage to anchorage, I would strongly advise you not to hang a dinghy from the back end as weight at the extreme ends has a significant effect on seaworthiness, speed and safety.  Everything is a compromise and its up the owner to decide where the balance lies; my choice suits my boat and my type of sailing but if you only sail in sheltered waters in calmer conditions you could quite safely choose differently.

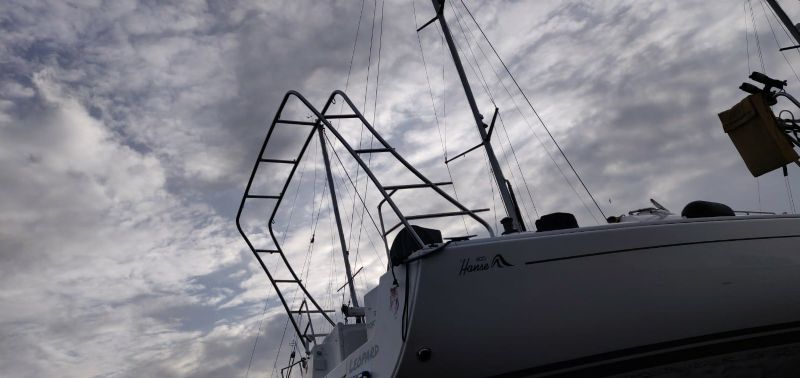

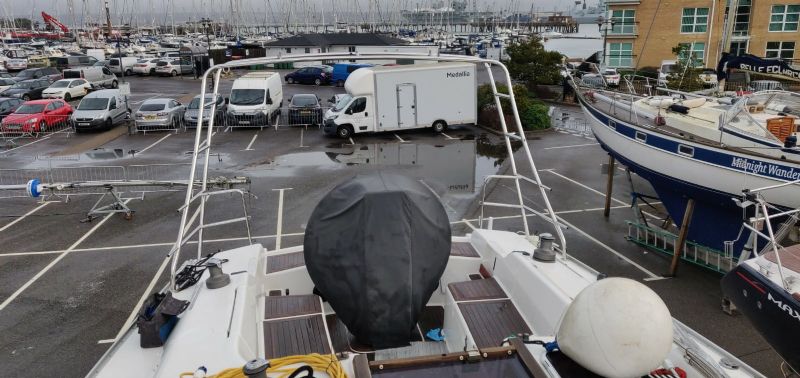

My manufacturer integrated the arch into existing pushpit so no extra holes were drilled through the deck.  However, he seriously increased the strength of the backing plates below the deck.  The attached photo shows the uncompleted arch; guard rail extensions, panels etc still to be fitted.  However, it shows you how the builder has carried the natural curves of the boat into the design.

Good luck!



Tengo un H345 en España y tiempo atrás le monté un arco de popa para colocar los paneles y pescantes para la neumática. No se colocar aquí fotos pero si me dices tu mail, te envío algunas. Me lo fabricaron en Cartagena.



Un abrazo.



Jesús



Te he contestado por privado pues no se como incluir aquí las fotografías.



Un abrazo. Jesús
