Companionway dampers
 Post Reply Post Reply Page  12>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
JonB View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 21 September 2010
Location: Cowes
Status: Offline
Points: 504 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JonB Quote  Post ReplyReply Direct Link To This Post Topic: Companionway dampers
    Posted: 28 November 2023 at 17:39
Hi Guys,

Very strange year didn't get out much.

One of the dampers has seized it has the following information on it.

STOBO  -  assume manufacturer
4004109  -  assume part number
800N 03/07  -  assume rating and date of manufacture

Does anyone know of a replacement in the UK or Europe?
Jon B
470e
http://www.norse-king.blogspot.co.uk
Back to Top
pdc78 View Drop Down
Commander
Commander
Avatar

Joined: 27 May 2016
Location: UK
Status: Offline
Points: 142 		Post Options Post Options   Thanks (0) Thanks(0)   Quote pdc78 Quote  Post ReplyReply Direct Link To This Post Posted: 29 November 2023 at 05:32
If a normal Web search doesn't show up a compatible strut, then I suggest you make some measurements.  The key dimensions (in mm) are cylinder diameter, piston diameter, closed length and fully extended.  You also need to note the end fitting thread size assuming you can unscrew the existing.  800N is the compression force in Newtons.

Stainless will be more expensive.  The default will be Nitride treated steel. https://www.sgs-engineering.com/gas-struts# in the UK is a place to start your supplier search.

Good luck.
H345 #269
Back to Top
Ggerrit View Drop Down
Captain
Captain


Joined: 19 June 2016
Location: Monnickendam
Status: Offline
Points: 163 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Ggerrit Quote  Post ReplyReply Direct Link To This Post Posted: 29 November 2023 at 06:46
https://www.stobogmbh.de
  It the website of them
Gerard
H400 2008 2 cabin
Back to Top
Wild View Drop Down
Vice Admiral
Vice Admiral
Avatar

Joined: 18 March 2010
Location: Turkey-Greece
Status: Offline
Points: 937 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wild Quote  Post ReplyReply Direct Link To This Post Posted: 29 November 2023 at 13:45
Hello Jon

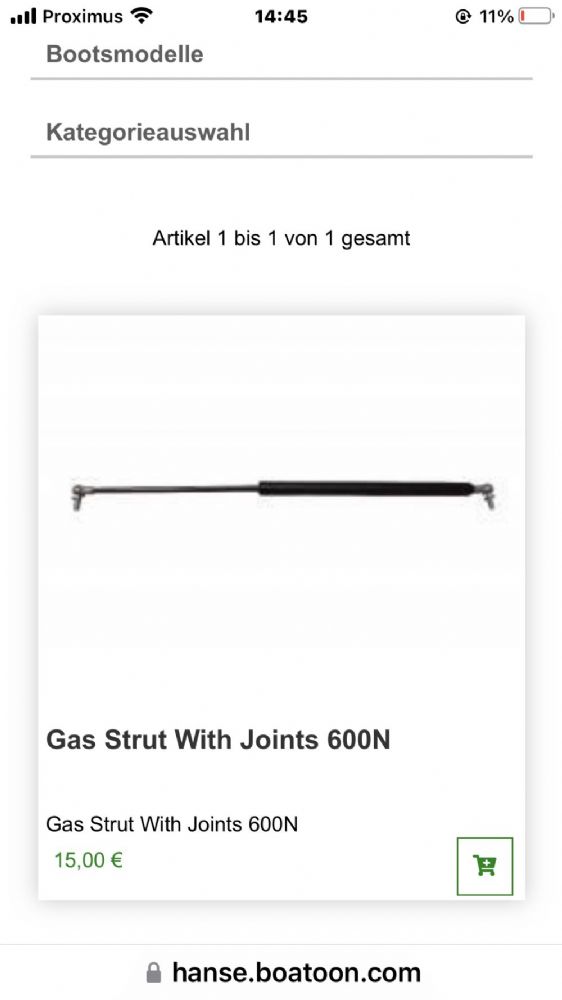

I ordered then by “Hanse.boatoon.com”under search function parts number TIM0328 price 15 euro in price list .
I pay them 22,50 in 03/2022



Edited by Wild - 29 November 2023 at 13:47
Wild and Wet
Belgium
545e#268
Back to Top
JonB View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 21 September 2010
Location: Cowes
Status: Offline
Points: 504 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JonB Quote  Post ReplyReply Direct Link To This Post Posted: 30 November 2023 at 11:49
Thanks guys,

I've gone to Struts Depot in London to see what they have.

Hanse.boatoon.com, doesn't seem to supply them any more and I've also a request with STOBO, see what they say - cheers
Jon B
470e
http://www.norse-king.blogspot.co.uk
Back to Top
Jojo View Drop Down
Captain
Captain
Avatar

Joined: 03 August 2022
Location: liljeholmen swe
Status: Offline
Points: 166 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jojo Quote  Post ReplyReply Direct Link To This Post Posted: 01 December 2023 at 11:52
Hallo replace from other brands is available
But as always the steel rod when not stainless needs to have a clean once a month with a oil spayed cloth type 5-56 or similar
The rod is otherwise rusted and seal is damaged


Hope this helps

Regards jonas
3 Cabin, Hanse 342, Deep draft, Tiller version.
Back to Top
Wild View Drop Down
Vice Admiral
Vice Admiral
Avatar

Joined: 18 March 2010
Location: Turkey-Greece
Status: Offline
Points: 937 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wild Quote  Post ReplyReply Direct Link To This Post Posted: 01 December 2023 at 12:59
Hi Jon

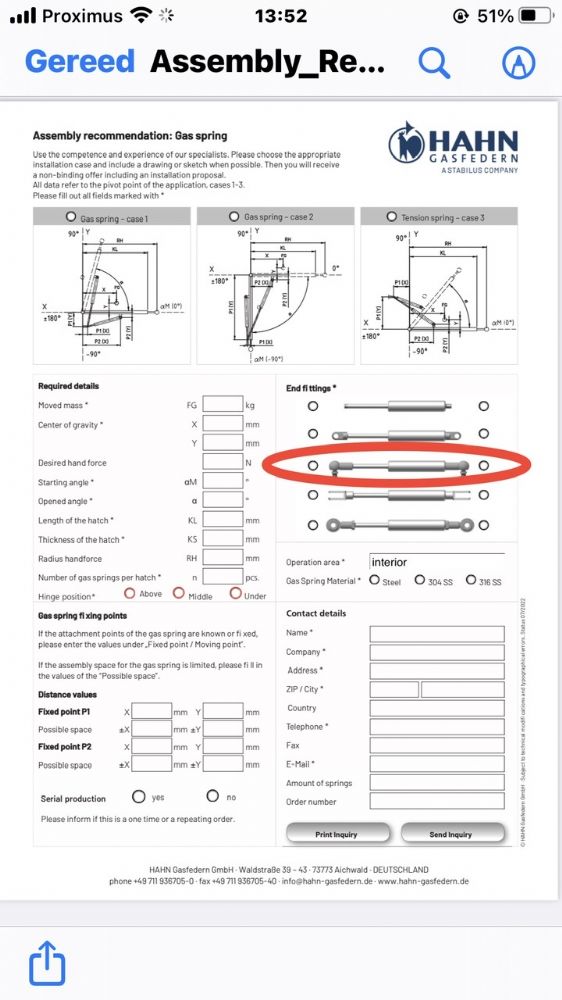

The original and the replacement set delivered by Boatoon is from the German brand HAHN.


Edited by Wild - 01 December 2023 at 13:02
Wild and Wet
Belgium
545e#268
Back to Top
Wild View Drop Down
Vice Admiral
Vice Admiral
Avatar

Joined: 18 March 2010
Location: Turkey-Greece
Status: Offline
Points: 937 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Wild Quote  Post ReplyReply Direct Link To This Post Posted: 01 December 2023 at 13:05
Wild and Wet
Belgium
545e#268
Back to Top
JonB View Drop Down
Rear Admiral
Rear Admiral
Avatar

Joined: 21 September 2010
Location: Cowes
Status: Offline
Points: 504 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JonB Quote  Post ReplyReply Direct Link To This Post Posted: 01 December 2023 at 13:32
Thanks Chaps,

Gas spring shop (USA), suggests that the cylinder of the gas strut is 345mm when mine only measures 255mm, so a bit wary of buying the wrong product despite it saying it is the direct replacement.

I can't find that page on the Hahn web site do you have a link?
Jon B
470e
http://www.norse-king.blogspot.co.uk
Back to Top
pdc78 View Drop Down
Commander
Commander
Avatar

Joined: 27 May 2016
Location: UK
Status: Offline
Points: 142 		Post Options Post Options   Thanks (0) Thanks(0)   Quote pdc78 Quote  Post ReplyReply Direct Link To This Post Posted: 01 December 2023 at 13:54
Jon
  The link I sent you for sgs will get you stainless gas springs from a UK supplier in most of the sizes per Hahn.  It was stainless tension springs that they could not supply.
Regards Paul
H345 #269
