Hello Forum,

my Hanse 312 buildt 2004 is equipped with the RPM meter
(picture attached) which also shows the engines operation hours.

Since some time the indicator of the RPM meter often remains on
200 RPM even though the engine is stopped.

The new fault now is the hour meter which only shows fragments of the digits.

So, I have to substitute the entire meter.

The data on the instrument are:

"Siemens VDO  trading Nr. 02 12 195   12 / 24 V"

VDO told me to contact Yamar. So I did. But the spare part they offer is quite expensive.

Has any one out there an additional idea where I could get such a spare part ?

Thanks in advance for your advice.
Sailbonbon
Back to Top
Fendant View Drop Down
Admiral
Admiral


Joined: 03 November 2012
Location: Switzerland
Status: Offline
Points: 1617
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fendant Quote  Post ReplyReply Direct Link To This Post Posted: 05 September 2016 at 18:29
You can find them for ~400 $ on ebay.
Happy Hunting
Frank
Back to Top
JesperBergsjo View Drop Down
Lieutenant
Lieutenant


Joined: 12 August 2012
Location: Sweden
Status: Offline
Points: 23
Post Options Post Options   Thanks (0) Thanks(0)   Quote JesperBergsjo Quote  Post ReplyReply Direct Link To This Post Posted: 05 September 2016 at 18:33
Hi,
the blank LCD for the hour meter is a standard error. I'm in my second Hanse with Yanmar engine and both stopped to work after approx 8 years. I have a couple of friends with the same problem. However, there is a method to fix it if you are a "handy man". I attach the instruction how to do it.

Jesper
Back to Top
Sailbonbon View Drop Down
Lieutenant
Lieutenant


Joined: 07 September 2011
Status: Offline
Points: 26
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sailbonbon Quote  Post ReplyReply Direct Link To This Post Posted: 06 September 2016 at 09:24
Thanks to both of you.
I will try to repair the meter next month as described
in Jespers paper.

Will report about the results.
Sailbonbon
Back to Top
2small View Drop Down
Sub Lieutenant
Sub Lieutenant
Avatar

Joined: 01 November 2010
Location: Deutschland
Status: Offline
Points: 19
Post Options Post Options   Thanks (0) Thanks(0)   Quote 2small Quote  Post ReplyReply Direct Link To This Post Posted: 06 October 2016 at 12:15
We have installed an external hour meter in the Cabin next to the electric panel. The rev counter works mostly correct.

y-u.n
Back to Top
Sailbonbon View Drop Down
Lieutenant
Lieutenant


Joined: 07 September 2011
Status: Offline
Points: 26
Post Options Post Options   Thanks (0) Thanks(0)   Quote Sailbonbon Quote  Post ReplyReply Direct Link To This Post Posted: 16 December 2016 at 13:04
Surprise, surprise,

before I followed the repair instruction I searched through the internet and
found a later post from the instructions editor. There he mentioned that
the hour meter after a while again was faulty.

What to do ?

This morning I dismounted the instrument and found an easy solution:

1. Loosen the 3 screws you can see on the back of the instrument
2. Before the screws come out pusch them in direction of the front glas
3.Through this the glas will come off and you can take the instrument out of
its housing.
4. Carefully take the white connector away from the pins on the plate (see picture)
5. Also take out the smal white plastic piece ( its the end of the cable ribbon) of the connector
6. Spray all the connections with a contact fluid
7. Put everything carefull together.
8. Do not use metal instruments to manipulate the electric parts

After this procedure my hour meter shows clear visible digits again.

Best regards


Sailbonbon
Back to Top
h315idra View Drop Down
Captain
Captain
Avatar

Joined: 31 August 2010
Location: Italia
Status: Offline
Points: 298
Post Options Post Options   Thanks (0) Thanks(0)   Quote h315idra Quote  Post ReplyReply Direct Link To This Post Posted: 16 December 2016 at 15:08

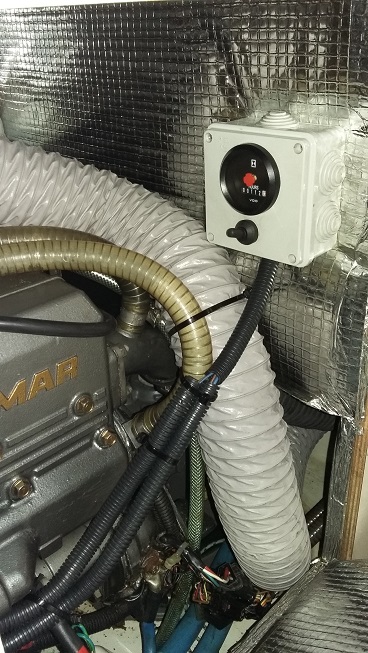

My hour counter (Yanmar Panel , 2006 315) works only in summertime LOL, whet the weather is dry. Now I decide to install (by my mechanic) a analogic hour counter inside the motor box, togheter a Emergency engine starter, if you lose or broke the key, or if the electric panel make default.
Alessandro Camerini

315#526

Marina di Salivoli, Piombino ITALY
Back to Top
Ta'I Miti 2 View Drop Down
Captain
Captain
Avatar

Joined: 05 April 2016
Location: Brussels
Status: Offline
Points: 237
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ta'I Miti 2 Quote  Post ReplyReply Direct Link To This Post Posted: 18 January 2017 at 14:30
I bought on E Bay an engine hour meter for 7.94€


I installed it in the cabin/engine door side panel


Not only those who wander are lost

I've learn that the best way to learn about people is to sail with them
Back to Top
Ta'I Miti 2 View Drop Down
Captain
Captain
Avatar

Joined: 05 April 2016
Location: Brussels
Status: Offline
Points: 237
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ta'I Miti 2 Quote  Post ReplyReply Direct Link To This Post Posted: 18 January 2017 at 14:51
If you have to change your RPM meter

You can buy any kind of diesel RPM meter
Even on e bay  ;-)

You plug in on the "W" of the alternator

Over and out



Not only those who wander are lost

I've learn that the best way to learn about people is to sail with them
Back to Top
Gregor View Drop Down
Admiral
Admiral
Avatar

Joined: 11 February 2006
Location: Netherlands
Status: Offline
Points: 1256
Post Options Post Options   Thanks (0) Thanks(0)   Quote Gregor Quote  Post ReplyReply Direct Link To This Post Posted: 19 January 2017 at 06:48
Have look in the other topic on the hour meter in the 312-part of the forum.
