Incorrect bow thruster voltage reading

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   Hi.
I’m hoping others have solved this.  I have a new set of bow thruster batteries and the worth panel is reading 99 volts.  They test fine at 24 volts.

Is there anything I can do to fix this,  is there a setting in the worth panel?
Thanks,
-Chris

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
chillios Members Profile Send Private Message Find Members Posts Add to Buddy List Lieutenant Commander Joined: 18 December 2012 Location: USA Status: Offline Points: 72	Post Options Post Reply Quote chillios Report Post Thanks(0) Quote Reply Topic: Incorrect bow thruster voltage reading Posted: 22 June 2025 at 04:12
	Hi. I’m hoping others have solved this. I have a new set of bow thruster batteries and the worth panel is reading 99 volts. They test fine at 24 volts. Is there anything I can do to fix this, is there a setting in the worth panel? Thanks, -Chris

marsella Members Profile Send Private Message Find Members Posts Add to Buddy List Rear Admiral Joined: 21 June 2022 Location: Antigua Jolly H Status: Offline Points: 592	Post Options Post Reply Quote marsella Report Post Thanks(0) Quote Reply Posted: 22 June 2025 at 06:09

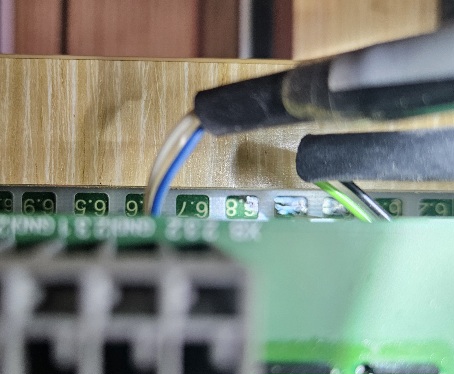

	The wires sensing the voltage of all batteries are attached to the Wurth panel somewhere here, you can check the voltage at those contacts to see what it reads. I would simply turn the power to the Wurth panel off and then back on, it should reset and hopefully will show everything correctly Edited by marsella - 22 June 2025 at 11:43

Arcadia Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 27 November 2017 Location: Sag Harbor, USA Status: Online Points: 1112	Post Options Post Reply Quote Arcadia Report Post Thanks(0) Quote Reply Posted: 22 June 2025 at 13:31
	Is it possible that the sense wires are reversed ?
	Leon / ARCADIA 2018 Hanse 588 Sag Harbor, NY

Arcadia Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 27 November 2017 Location: Sag Harbor, USA Status: Online Points: 1112	Post Options Post Reply Quote Arcadia Report Post Thanks(0) Quote Reply Posted: 22 June 2025 at 17:17
	If they are reversed or disconnected, it would most likely have happened at the batteries Edited by Arcadia - 22 June 2025 at 17:18
	Leon / ARCADIA 2018 Hanse 588 Sag Harbor, NY

chillios Members Profile Send Private Message Find Members Posts Add to Buddy List Lieutenant Commander Joined: 18 December 2012 Location: USA Status: Offline Points: 72	Post Options Post Reply Quote chillios Report Post Thanks(0) Quote Reply Posted: 23 June 2025 at 01:34
	Thank you for the replies. I will look at the wires being reversed this week once back aboard and report back. Edited by chillios - 23 June 2025 at 01:43

chillios Members Profile Send Private Message Find Members Posts Add to Buddy List Lieutenant Commander Joined: 18 December 2012 Location: USA Status: Offline Points: 72	Post Options Post Reply Quote chillios Report Post Thanks(0) Quote Reply Posted: 25 June 2025 at 19:29
	Hello, I did validate the proper insertion into the Wurth panel (6B3). The panel only has a positive connection, so no wires to reverse. Open to additional thoughts. -Chris

Arcadia Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 27 November 2017 Location: Sag Harbor, USA Status: Online Points: 1112	Post Options Post Reply Quote Arcadia Report Post Thanks(0) Quote Reply Posted: 25 June 2025 at 20:46
	Did you check the connections at the bow thruster battery location. At the battery terminals.
	Leon / ARCADIA 2018 Hanse 588 Sag Harbor, NY

marsella Members Profile Send Private Message Find Members Posts Add to Buddy List Rear Admiral Joined: 21 June 2022 Location: Antigua Jolly H Status: Offline Points: 592	Post Options Post Reply Quote marsella Report Post Thanks(0) Quote Reply Posted: 25 June 2025 at 21:56
	If you are sensing correct bat voltage in Wurth, swap the sense wire between thruster bat and house/engine bat to see what it shows. It doesnt look logical that your other bats would show the right voltage but not the thruster one

Arcadia Members Profile Send Private Message Find Members Posts Add to Buddy List Admiral Joined: 27 November 2017 Location: Sag Harbor, USA Status: Online Points: 1112	Post Options Post Reply Quote Arcadia Report Post Thanks(0) Quote Reply Posted: 25 June 2025 at 22:05
	If the batteries were recently replaced then look there for the most likely error.
	Leon / ARCADIA 2018 Hanse 588 Sag Harbor, NY

chillios Members Profile Send Private Message Find Members Posts Add to Buddy List Lieutenant Commander Joined: 18 December 2012 Location: USA Status: Offline Points: 72	Post Options Post Reply Quote chillios Report Post Thanks(0) Quote Reply Posted: 27 September 2025 at 02:49
	Voltage show 24.6 at the panel… but the wurth display shows 99. I tried switching to the house battery slot , but it also will not read properly as it’s looking for 12v.
