Placement putting on foredeck? |
Post Reply
|
| Author | |
mystudio
Captain
Joined: 17 April 2018 Location: Netherlands Status: Offline Points: 177 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Placement putting on foredeck?Posted: 24 February 2019 at 09:43 |
|

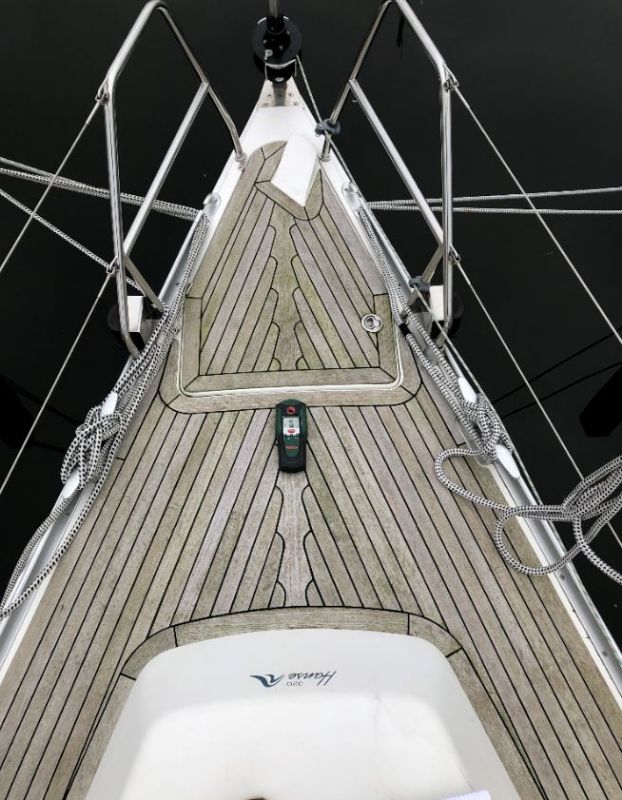

Can anyone confirm that there is a metal (aluminium) plate on the foredeck at this position? (the position where the metaldetector lays down) I have to place a putting here for the spinnaker pole, so I am looking for the best position. Any insights are appreciated! Also insights on how wide this reinforcement is.
 |
|
|
#004|Jefa DD1|ACU200|EV1|P70|Raymarine E7|Axiom Pro9s|B&G displays|Emtrak transponder|Lewmar traveller|Dyneema|Flexofold|Carbon pole|ball bearing genoacars|Membrame sails|Spi and asym spi|N2K->Wifi
|
|
 |
|
|
Peter-Blake
Admiral of the Fleet
Joined: 04 March 2008 Status: Offline Points: 2471 |
Post Options
Thanks(0)
Quote Reply
Posted: 24 February 2019 at 18:26 |
|
Try to get a drawing with the reinforcements in the deck. On my 370 there is on this spot a metalplate. look here and try to pm CharlesP (see last post in this thread) |
|
|
Blake 370
|
|
|
|
|
FTK
Captain
Joined: 24 September 2018 Location: Hungary Status: Offline Points: 160 |
Post Options
Thanks(0)
Quote Reply
Posted: 24 February 2019 at 19:56 |
|
Hi mystudio,
I could send you a plan about reinforcement positions, but this is a .pdf file, I can't upload it. I found it somewhere on the net, maybe in this forum.
If you give me an e-mail address I send it to you. |
|
|
320 #145
|
|
|
|
|
CharlesP
Admiral
Joined: 23 September 2010 Location: United Kingdom Status: Offline Points: 1208 |
Post Options
Thanks(0)
Quote Reply
Posted: 24 February 2019 at 21:08 |
|
hi Peter Blake. I’ve offered to email the drawing to Marco.
Charles
|
|
|
'MERIDIAN LADY'
320 Nr 536 2010 Medway |
|
|
|
|
mystudio
Captain
Joined: 17 April 2018 Location: Netherlands Status: Offline Points: 177 |
Post Options
Thanks(0)
Quote Reply
Posted: 26 February 2019 at 07:48 |
|
Thx for the drawings! This is really helpful. I also found someone on this forum with a probably factory bowsprit. Hope he will be able to answer my question where he got it.
|
|
|
#004|Jefa DD1|ACU200|EV1|P70|Raymarine E7|Axiom Pro9s|B&G displays|Emtrak transponder|Lewmar traveller|Dyneema|Flexofold|Carbon pole|ball bearing genoacars|Membrame sails|Spi and asym spi|N2K->Wifi
|
|
|
|
|
FTK
Captain
Joined: 24 September 2018 Location: Hungary Status: Offline Points: 160 |
Post Options
Thanks(0)
Quote Reply
Posted: 26 February 2019 at 08:16 |
|
Please keep me updated! I am planning a bow sprit on my boat as well
|
|
|
320 #145
|
|
|
|
|
mystudio
Captain
Joined: 17 April 2018 Location: Netherlands Status: Offline Points: 177 |
Post Options
Thanks(0)
Quote Reply
Posted: 28 February 2019 at 15:41 |
|

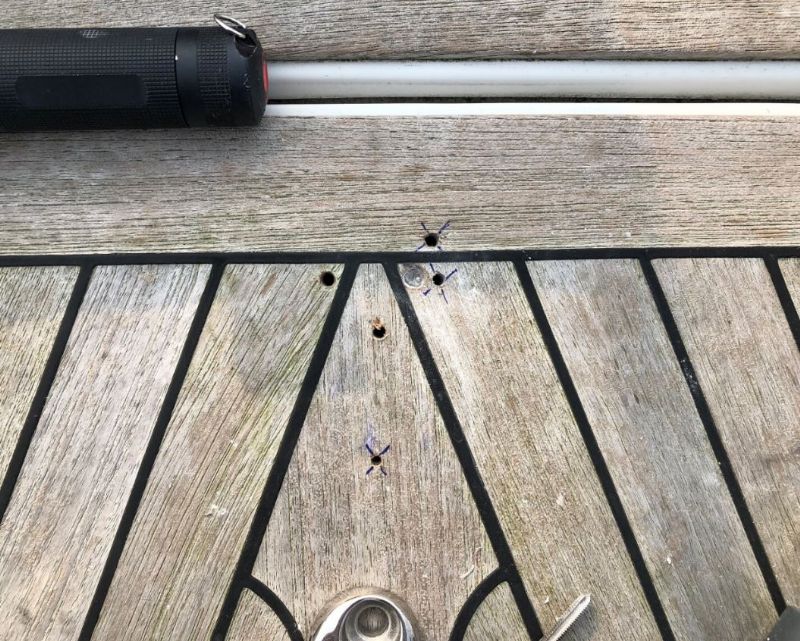

Too bad Hanse didn't center the reinforcement alu plate. Now it's guessing where it is :-( 3 bad holes already and counting. Hanse, don't mess these things up please please!

|
|
|
#004|Jefa DD1|ACU200|EV1|P70|Raymarine E7|Axiom Pro9s|B&G displays|Emtrak transponder|Lewmar traveller|Dyneema|Flexofold|Carbon pole|ball bearing genoacars|Membrame sails|Spi and asym spi|N2K->Wifi
|
|
|
|
|
StavrosNZ
Rear Admiral
Joined: 24 October 2014 Location: New Zealand Status: Offline Points: 581 |
Post Options
Thanks(0)
Quote Reply
Posted: 01 March 2019 at 00:33 |
|
Buy a cheap metal detector which will save you all of these holes and problems
|
|
|
Stephen
2010 H400 #691, Auckland, New Zealand |
|
|
|
|
mystudio
Captain
Joined: 17 April 2018 Location: Netherlands Status: Offline Points: 177 |
Post Options
Thanks(0)
Quote Reply
Posted: 02 March 2019 at 19:20 |
|
Unfortunally, it doesn't. I have one. It's not precise enough to detect EXACTLY where the aluminium plate starts end ends. So, I bought another one, a really expensive one. Same problem. So, too bad, but, you can't solve this by a metal detector alone The plate is smaller than the described 10x10, otherwise it would have worked out because you have enough room for interpretation.
|
|
|
#004|Jefa DD1|ACU200|EV1|P70|Raymarine E7|Axiom Pro9s|B&G displays|Emtrak transponder|Lewmar traveller|Dyneema|Flexofold|Carbon pole|ball bearing genoacars|Membrame sails|Spi and asym spi|N2K->Wifi
|
|
|
|
|
